PowerLine
The flexible universal shredder
Performance you can count on! The PowerLine takes on any form of waste, including dirty materials. It is ideal as a secondary shredder in multi-stage systems: after sorting the material out that is not ideal for the production of RDF, the valuable material remains and is ready for further size reduction. This machine comes equipped with a hydraulic drive, a direct drive, or a power belt drive.
MSW waste shredders | WEIMA PreCut 2000 and PowerLine 2500 @Sunchang Energy
A WEIMA PreCut 2000 single-shaft shredder pre-shreds municipal solid waste for the production of refuse-derived fuels (RDF). Secondary shredding happens with a WEIMA PowerLine 2500 single-shaft shredder. Both shredders are equipped with a hydraulic drive by Hägglunds Bosch Rexroth.

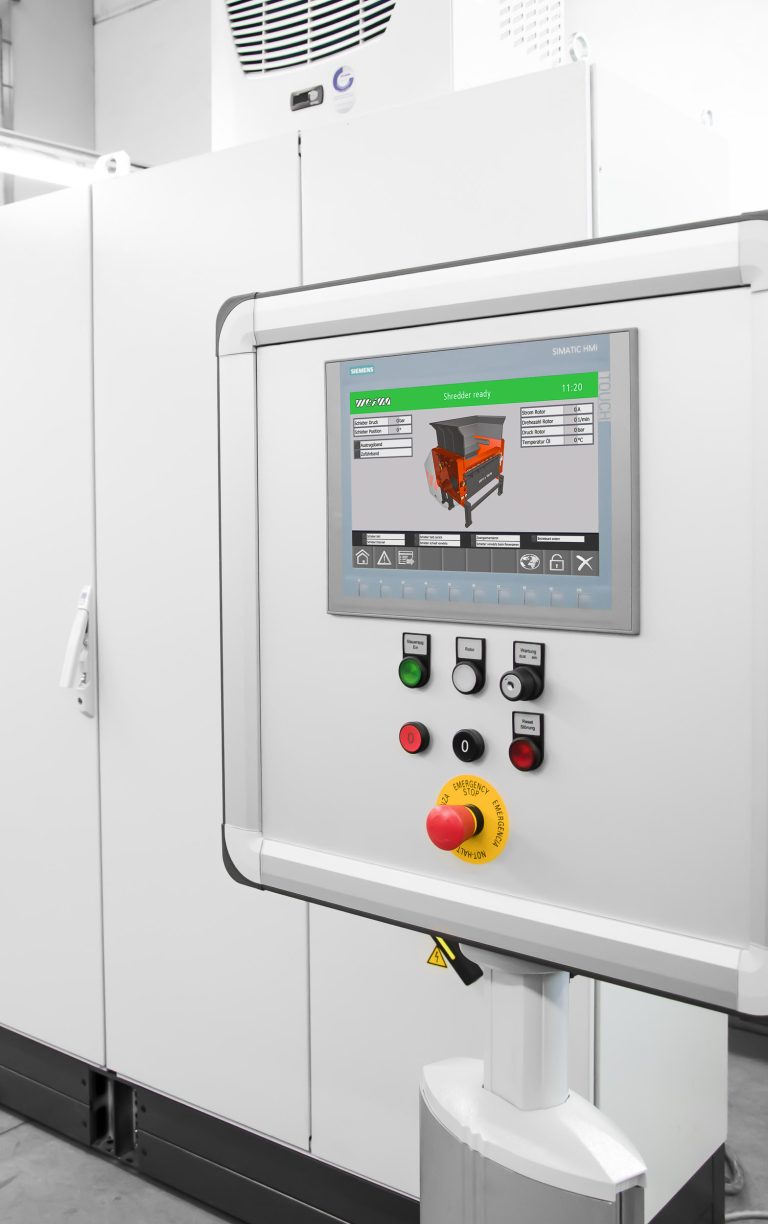

Flexible adjustment of cutting parameters with Siemens S7 PLC control
We manufacture our control cabinets ourselves in our German factories, using only brand-name components. With the large touch display, you have all important data and settings at your fingertips. The flexible adjustment of parameters such as the rotor speed or the ram movement is thus easily possible. For challenging conditions, we recommend optional control cabinet cooling.

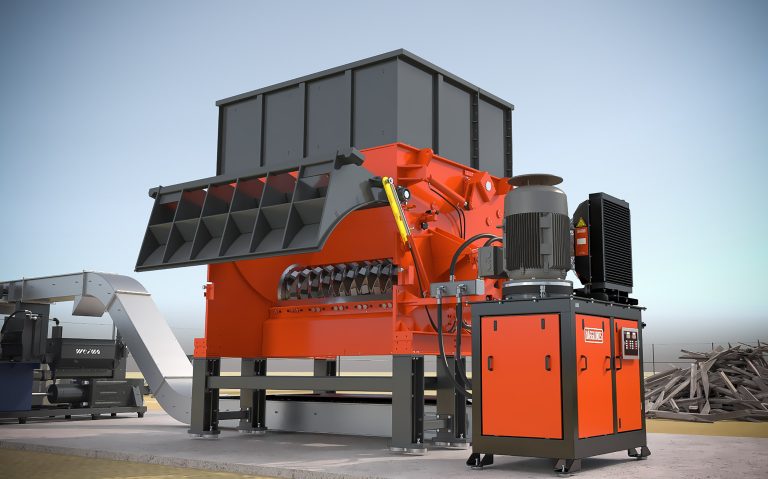

Plenty of space for maintenance work thanks to hydraulic inspection flap
The shredders can be opened outward on both sides via a flap or door – at the front for work on the screen and at the rear for direct rotor access. This facilitates routine maintenance, such as knife rotation, or optimization of the cutting gap. Foreign materials can also be easily removed manually. Down times are reduced to a minimum.
Shredding of household and municipal waste with a PowerLine 2500

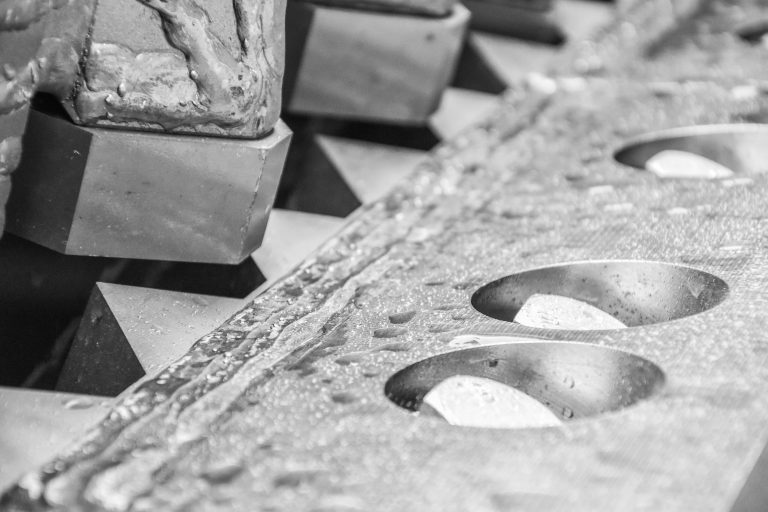

Consistently high-quality cuts with SuperCut cutting gap adjustment
The counter knives are user-friendly, adjustable from the outside via a screw system, and can be easily reversed when worn. In addition, they are protected by cover plates and positioned at an angle for an even more aggressive cut.

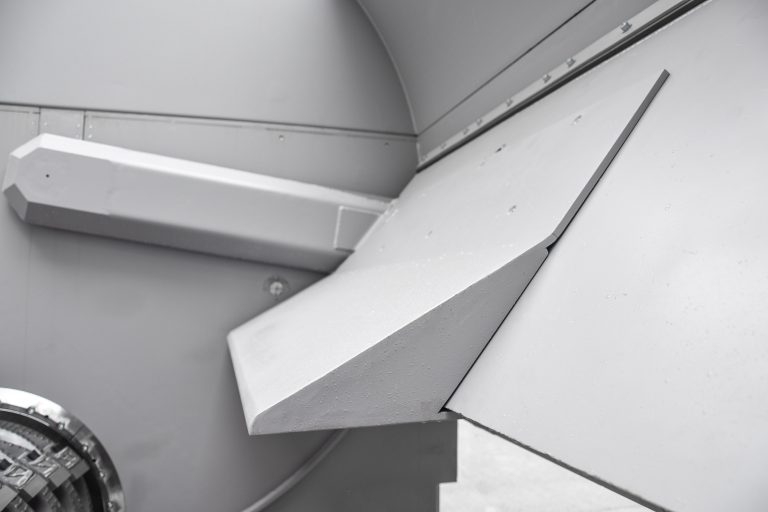

Load-dependent feeding for maximum throughput with swing ram
Material is fed to the rotor with a swing ram. The swing attachment, which is located on the outside of the pre-shredder, ensures maximum cutting chamber size. The swing ram can optionally be equipped with an additional pressing feature to hold the material more firmly against the rotor. In addition, turbo hydraulics are used for faster swing arm movements and result in higher throughputs.
Always lubricated bearings thanks to automatic central lubrication
The central lubrication system mounted on the side of the machine frame ensures that rotor bearings, swingarm bearings, screen bearings and inspection flap bearings are always optimally lubricated. This eliminates the need for manual lubrication by hand pump.
Plastics recycling at Veolia
At the Swedish company Veolia Recycling Plastics Sweden AB, waste bins and other HDPE plastic waste from production are turned into new raw material with the help of a WEIMA PowerLine 2500 shredder and downstream wash line.
PowerLine rotor for universal use with waste of all kinds
Due to its high solid dead weight, the PowerLine Rotor requires less torque for shredding. Vautid protection against increased wear is available as a full shell or in the form of welded seams. Side-mounted rotor face plates made of Creusabro® also protect against abrasive material flows. The shaft journals are bolted on both sides. Cutting blades in sizes 60, 80 and 100 mm can be flexibly selected.

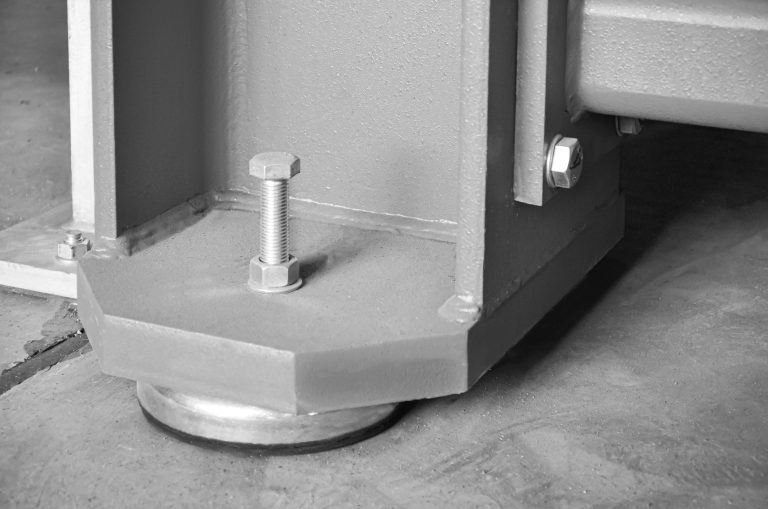

Secure footing on any terrain with level, heavy duty feet
Even if your production surfaces are not one hundred percent level: Thanks to our standard, adjustable heavy duty feet, the machine is guaranteed to have a firm hold.
The right drive makes the difference – Hydraulic, high-torque or electromechanical?
You have the choice: our PowerLine shredders are available with a Hägglunds hydraulic drive, a high-torque drive by Baumüller or a conventional electromechanical drive. Your individual application always decides which one is the right one.
Hydraulic drive unit

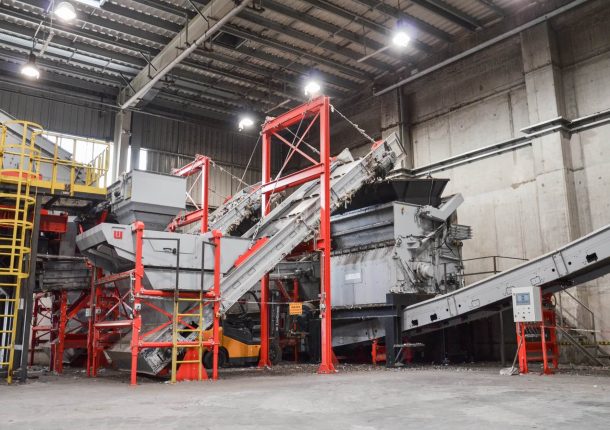

Two PowerLine shredders shred RDF waste for a CEMEX cement plant in Poland
In the eastern Polish town Chelm, the waste recycling company EkoPaliwa operates its new plant for the production of alternative fuels. At the center are two WEIMA PowerLine 3000 single-shaft shredders with powerful hydraulic drives, which are used as secondary shredders.
Easy integration into production lines or as a stand-alone solution
Optimally connected: WEIMA shredders have all common interfaces to ensure fast integration into existing production lines. Thousands of system solutions in cooperation with plant engineering partners worldwide speak for themselves. The elevated base frame offers plenty of space for all common conveyor belts – perfect for transporting shredded material away.
Flexible screen change for changing material flows thanks to lift-up screen basket
All FineCut shredders have a screen basket that can be swung upwards, on which the screen segments are screwed. They can be changed quickly and are protected against wear. With secondary shredders, a particle size of 30 – 150 mm can be achieved.
PowerLine Siebsegment
HDPE Pipe shredding with a WEIMA PowerLine 2500 @ Remondis Röstånga, Sweden
A WEIMA PowerLine 2500 single-shaft shredder shreds different types of HDPE pipes at a recycling plant of Remondis in Röstånga, Sweden.
Pre-shredding or post-shredding? WEIMA offers solutions for both tasks
Our shredders are uncompromising against waste and create the conditions for your RDF production to run smoothly. WEIMA offers both pre- and post-shredders for all stages of processing. 40 mm thick side walls make our machine frames particularly solid. Variable equipment and sizes allow exact adaptation to any special requirement.
Technical data
Get to know our machines in detail.
- Rotor Diameter (mm)
- Rotor length (mm)
- Rotor Speed (rpm)
- Power (kW)
- Rotor Knives
- Available knife sizes (mm)
- Fraction size (mm)
- Infeed opening (mm)
- Length (mm)
- Width (mm)
- Height (mm)
- Weight (approx. kg)
- Wall thickness (mm)
PowerLine
- *
- *
- *
- *
- *
- *
- *
- *
- *
- *
- *
- *
- *
PowerLine 1500
- 800*1
- 1,500
- 80 - 200*2
- 160 - 350*3
- 68*4
- 80 | 100
- 30 - 150
- 1,800 x 1,500
- 3,190
- 4,260
- 4,770
- 15,500
- 40
*1 dependent on flight circle
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
PowerLine 2000
- 800*1
- 2,000
- 80 - 200*2
- 160 - 350*3
- 92*4
- 80 | 100
- 30 - 150
- 1,800 x 2,000
- 3,190
- 4,760
- 4,770
- 28,500
- 40
*1 dependent on flight circle
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
PowerLine 2500
- 800*1
- 2,500
- 80 - 200*2
- 160 - 350*3
- 116*4
- 80 | 100
- 30-150
- 1,800 x 2,500
- 3,190
- 5,260
- 4,770
- 31,500
- 40
*1 dependent on flight circle
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
PowerLine 3000
- 800*1
- 3,000
- 80 - 200*2
- 160 - 350*3
- 144*4
- 80 | 100
- 30 - 150
- 1,800 x 3,000
- 3,190
- 5,760
- 4,770
- 34,500
- 40
*1 dependent on flight circle
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
Success stories
What our customers think
Power(Line) for SRF production
The Binn Group, Scotland’s leading independent provider of integrated recycling and resource management solutions, shreds industrial waste with a WEIMA PowerLine 2000 for further processing into secondary fuel.
Read more
Polish CEMEX cement plant relies on WEIMA
Two WEIMA PowerLine 3000 single-shaft shredders with a powerful hydraulic drive used in secondary shredding absolutely take center stage here….
Read more

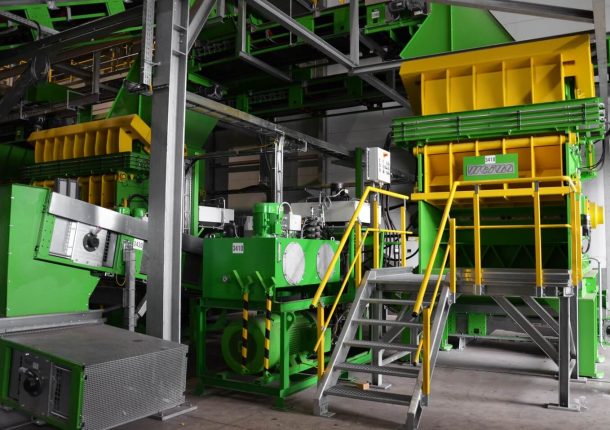

For a Clean Environment
