Waste Shredding and Secondary Fuel Production for Waste-to-Energy

Waste is a valuable material. Whether commercial waste, bulky or household waste, production rejects, rejects and paper, municipal waste, wood residues and carpet materials: WEIMA ensures high-throughput waste shredding and an optimal result in the extraction of valuable secondary fuels (RDF).

Robustly designed pre-shredders and shredders are used worldwide as a stand-alone solution or as part of a multi-stage waste treatment plant. The output material from different material fractions is ideally suited for the production of high-calorific alternative fuels (RDF). These are in particularly high demand for the production of energy for the cement industry.

About waste shredding
Waste Shredding and Secondary Fuel Production for Waste-to-Energy Waste Shredding and Secondary Fuel Production for Waste-to-Energy Waste Shredding and Secondary Fuel Production for Waste-to-Energy
0 / 0

Learn more about waste processing and production of refuse derived fuel (RDF) and solid recovered fuel (SRF)

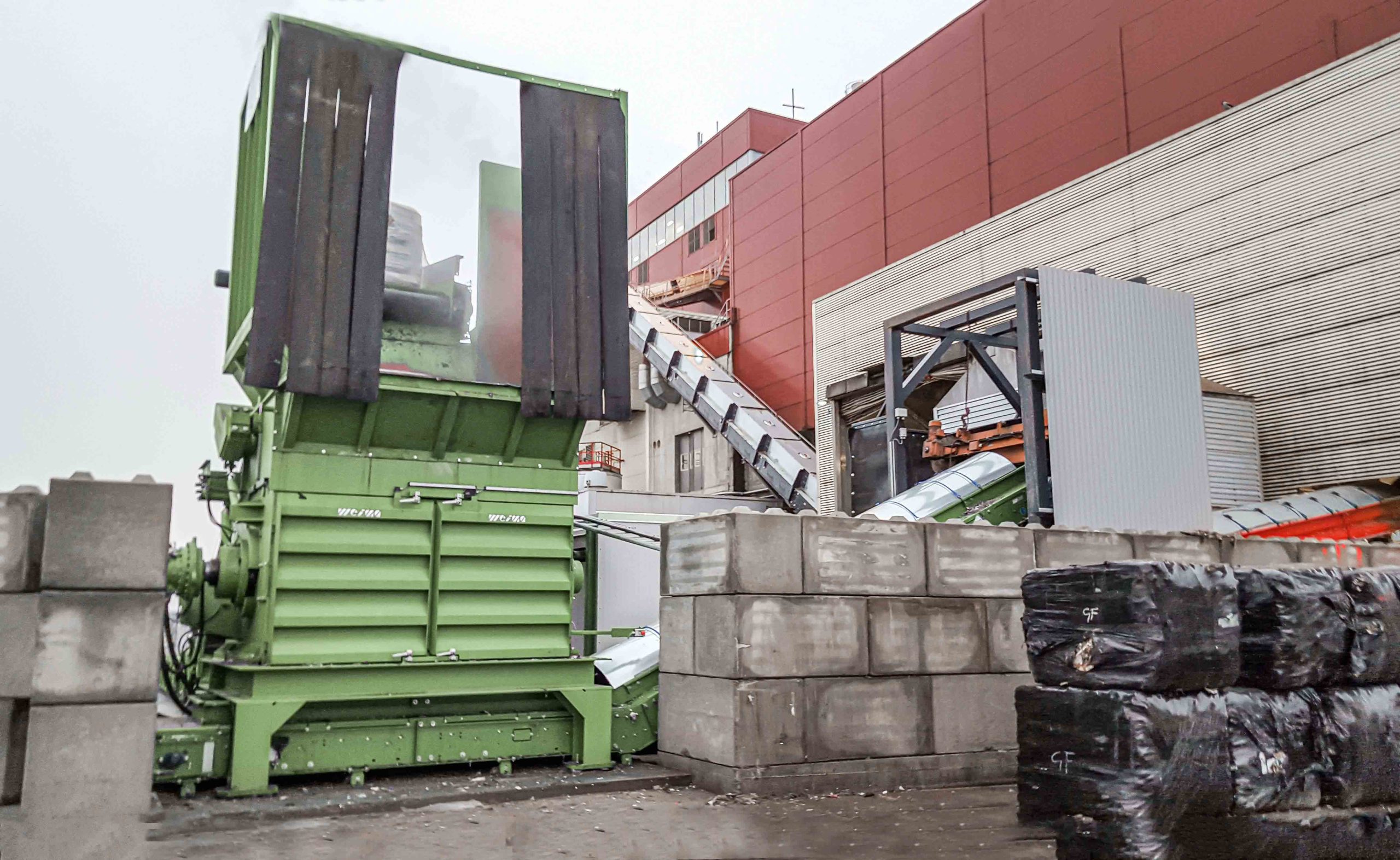

Shredder for pre-shredding and secondary shredding of waste
01

"Ain't no waste mountain high enough..."

With our shredding solutions we would like to contribute to the fact that waste that is no longer usable, but nevertheless valuable, does not find its way to the landfill site, but is used for energy generation. In doing so, the use of fossil fuels is further reduced, which protects the environment and is usually more economical.

02

"40 tons! This is the throughput a WEIMA waste shredder achieves per hour in the production of high-quality substitute fuel."

Erik Hagen
Business Development | Waste at WEIMA

Fiery passion for substitute fuel
The shredding of material streams is the cornerstone of any recycling process. Industrial shredders are used here. With the PowerLine, PreCut and FineCut Shredders, WEIMA demonstrates the potential of single and multi-stage processing of waste.

03

Stand-alone operation or integration into a production line – tap into the waste-to-energy potential

Depending on your requirements, we can supply you with the right shredder for your recycling task. If required, WEIMA also offers a multi-stage system solution in the form of a plant. We are assisted in this by an extensive supplier and service network that we have built up over the last decades. This includes specialists in the areas of conveyor technology, sorting, separation, screening technology, washing technology, metal detection, extrusion, heating construction and granulation. As a joint project team, we have already mastered hundreds of major tasks all over the world.

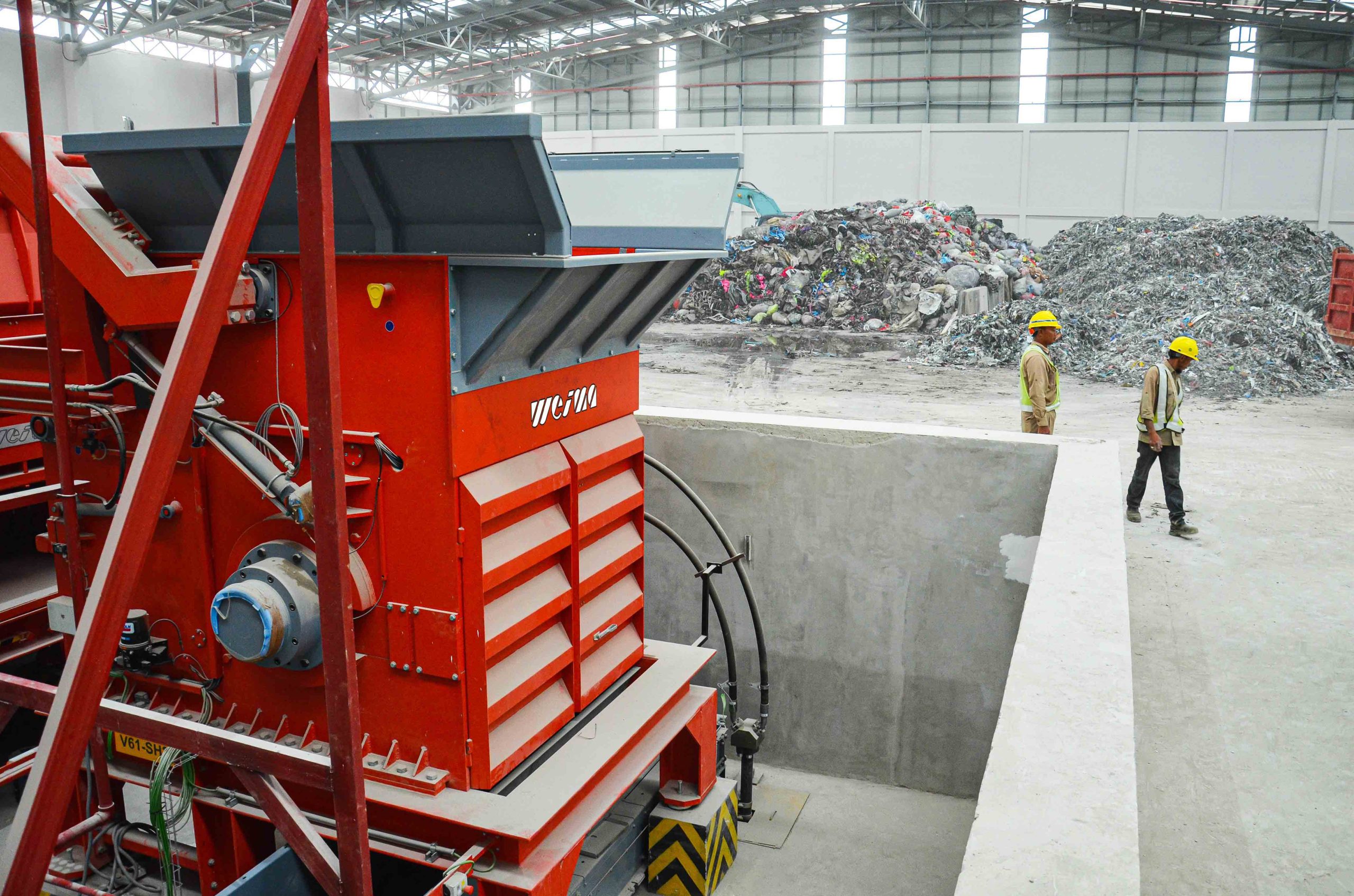

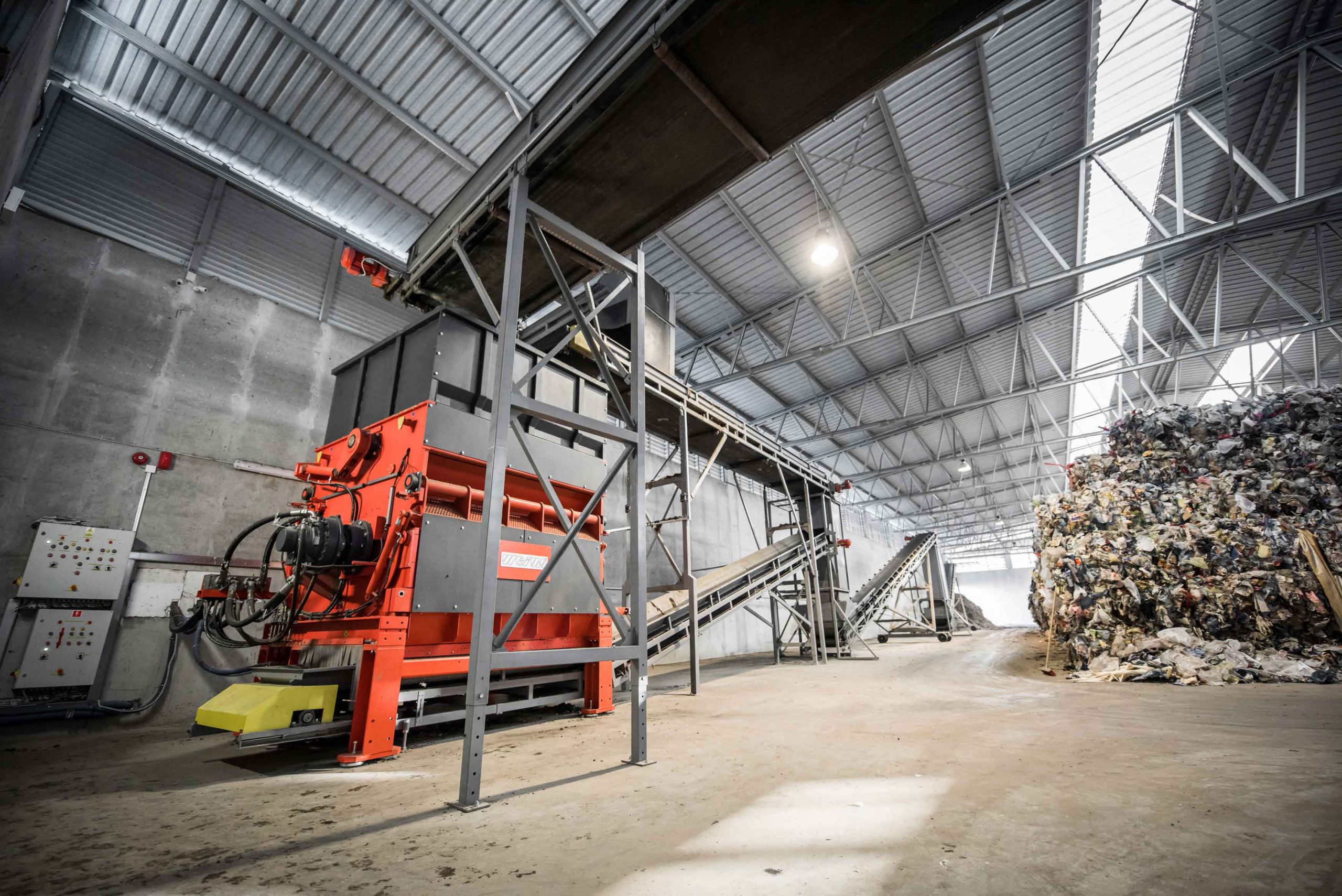

Industrial waste shredding

Inquire about a waste shredder today Request a quote
04

Use of alternative fuels in cement production

The cement industry has a very high demand for energy. This can increasingly be covered by substitute fuels. The focus is on the combustion of alternative fuels in calciners, pre-burners and kilns. In order to reduce energy costs, cement manufacturers are placing more and more emphasis on increasing the proportion of alternative fuels in energy production. Compared to classic materials, the thermal utilization of these fuels has better physical burning properties and better burnout in the kiln. In general, the better the secondary fuel used, the more efficient the production of high-quality clinker.

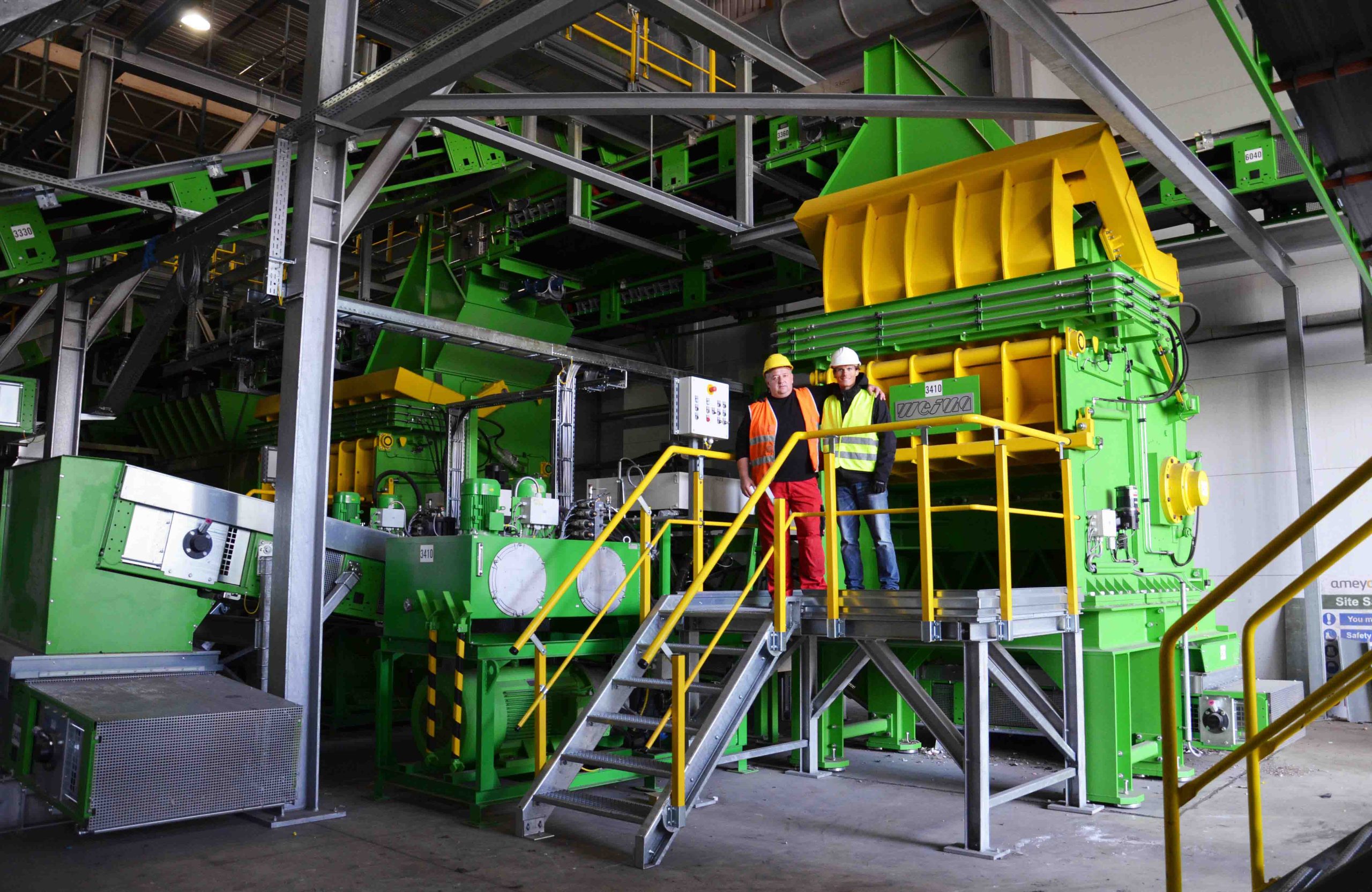

Municipal waste shredding

05

Waste shredders for co-processing
The production of cement requires enormous amounts of energy. To cover this sustainably, the use of secondary fuels is crucial. But co-processing is more than simply burning waste to generate energy.

06

Definition: What is co-processing?

The term co-processing describes a globally recognized technology used in energy-intensive industries (EII) such as cement production to recycle waste and industrial by-products for energy and materials. The mineral components in the waste replace primary raw materials (e.g. limestone) in the cement kiln, while the combustible materials provide the necessary energy for the production of clinker. No residual materials are produced in the process, and highly toxic wastes are also destroyed. Co-processing thus makes it possible to avoid landfilling and incineration of wastes such as sewage sludge, solvents, plastics from industry or mineral wastes.

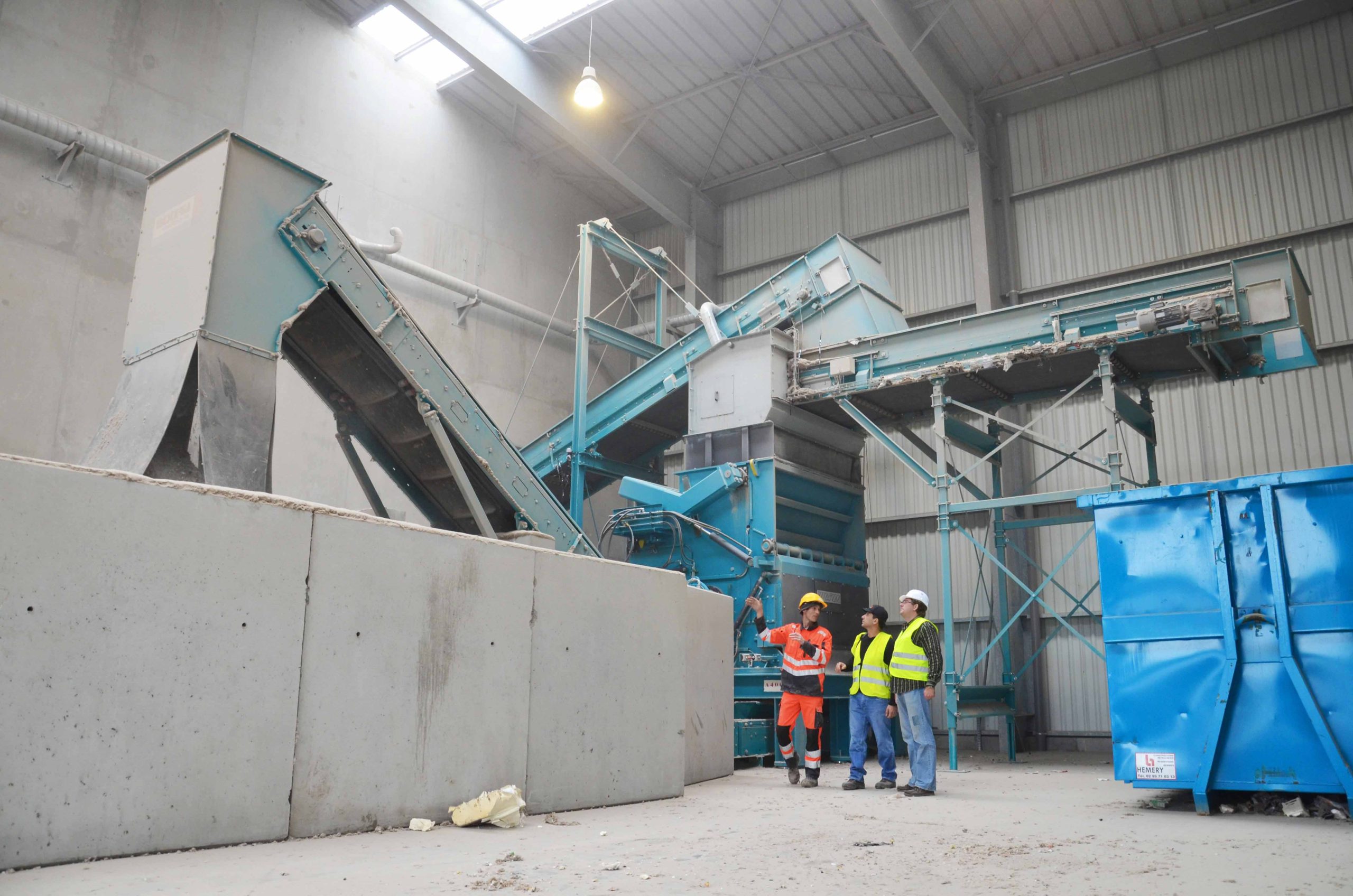

RDF substitute fuel

07

Advantages of Co-Processing

Co-processing in the context of cement production has many advantages: The extremely high temperatures and long residence time in the kiln completely destroy even hazardous and toxic waste. No residual materials are produced that have to be further recycled or landfilled. The use of co-processing technology also avoids the need to use fossil fuels and consequently reduces greenhouse gas emissions. In addition, cement manufacturers can massively reduce their energy costs thanks to secondary fuels from waste.

08

Pre-Processing with WEIMA shredders

Generally, waste cannot directly processed in cement kilns, but must be prepared beforehand. The treatment process, also called pre-processing, includes the shredding, mixing and drying of waste. The use of WEIMA shredders in pre-processing enables consistently homogeneous particle sizes of the most demanding material. This guarantees a stable fuel that meets the technical requirements of cement production.

09

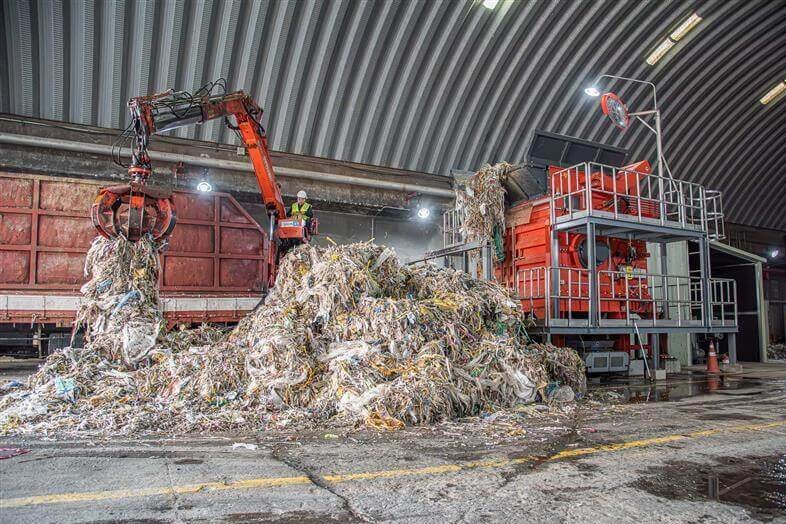

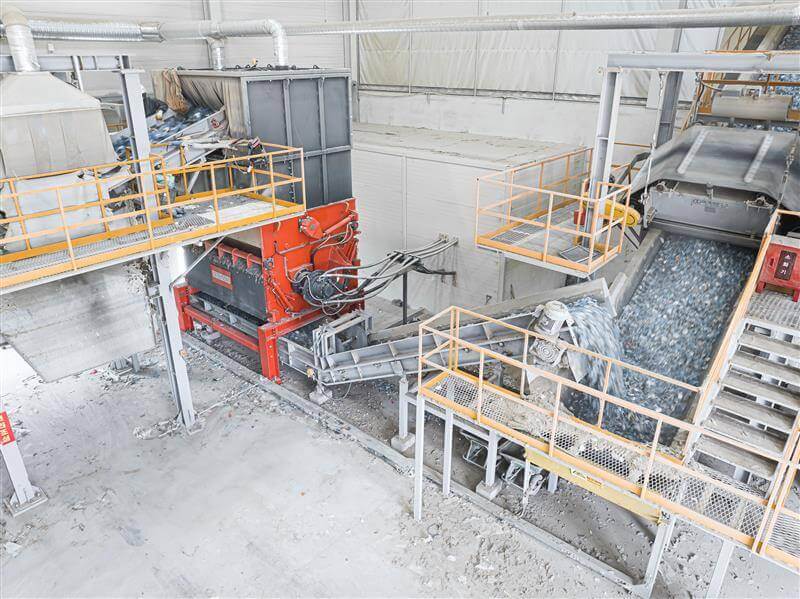

Industrial (C&I) and municipal waste (MSW) shredding with a WEIMA S7.30 lift-up shredder in Korea

A WEIMA S7.30 lift-up single-shaft shredder with a hydraulic drive by Hägglunds Bosch Rexroth shreds various kinds of waste for the production of RDF at Daewon Recycling in Gimje, South Korea.

You are interested in waste?
Here you can learn more about the most important basic terms:

10

Alternative fuel
WEIMA waste shredders are ideally suited for the production of medium and high calorific RDF (refuse derived fuel). These are fuels that are obtained from household, industrial and municipal waste. The different quality requirements depend on the thermal process. The typical processing steps of the high-calorific fraction include pre-sorting, pre-shredding, air separation and metal separation. Sensory sorting and drying are also possible. In most cases substitute fuel is used together with conventional fuels, e.g. in cement, lime, coal and industrial power plants.

11

Mechanical-biological waste treatment (MBT)
Generally speaking, this is household waste, MSW or commercial waste similar to household waste. This is first collected by waste management companies and transported to a central location for waste treatment, disposal or recycling. Typically, household waste contains a high proportion of organic substances. After a coarse pre-sifting, it is shredded and then divided into different fractions by screening. The coarse fraction (foil, paper, hard plastics, wood, etc.) is mostly used as fuel in RDF power plants due to its high caloric value. The fine fraction (organic substances), on the other hand, is usually treated further biologically. Gases produced in this way can be used to generate energy.

12

Municipal Solid Waste (MSW)
Household or municipal waste is usually referred to as MSW, collected in bags or garbage cans and collected by municipal or private waste service providers. This does not include commercial or industrial waste. While the organic components can be composted or otherwise made biologically usable, the majority of municipal household waste serves as an alternative fuel for various energy-intensive industries.

13

Solid Recovered Fuel (SRF)
The production of SRF usually requires additional process steps, as higher quality requirements for its production have been defined at European level. The essential properties of a classification include the calorific value as well as the chlorine and mercury content. This results in five quality classes to be able to call processed waste Solid Recovered Fuel.

14

MSW waste shredders | WEIMA PreCut 2000 and PowerLine 2500 @Sunchang Energy

A WEIMA PreCut 2000 single-shaft shredder pre-shreds municipal solid waste for the production of refuse-derived fuels (RDF). Secondary shredding happens with a WEIMA PowerLine 2500 single-shaft shredder. Both shredders are equipped with a hydraulic drive by Hägglunds Bosch Rexroth.

15

May we present?

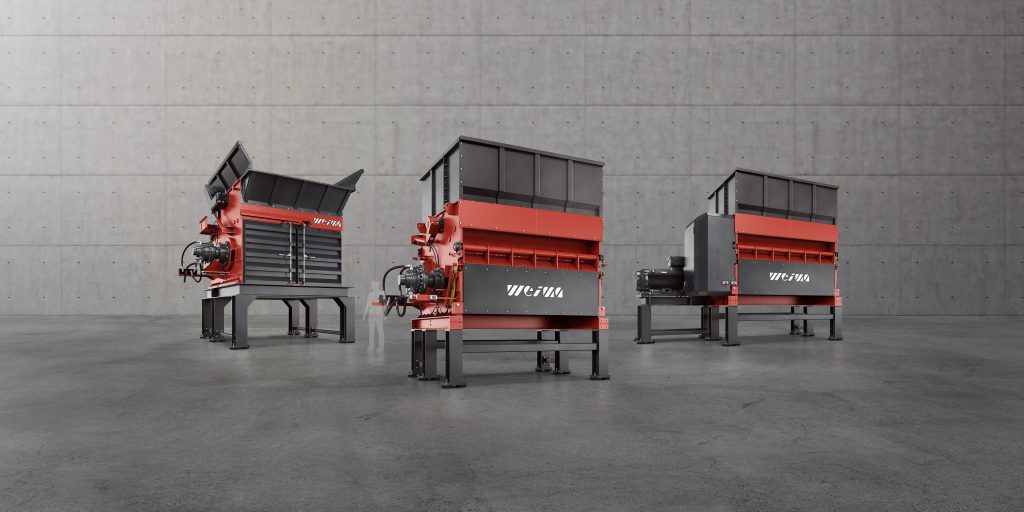

Your waste shredder trio

16

PreCut series

Particularly robust shredding machines are required for the pre-shredding of often heavily contaminated waste fractions. With the PreCut series you get a shredder that shreds material to a grain size of up to 400 mm.

Learn more

17

PowerLine series

The universal shredders of the PowerLine series take on any kind of waste, even dirty materials from the post-consumer sector. The 800 mm diameter rotor is available with a hydraulic drive from Hägglunds or a high-torque drive from Baumüller.

Learn more

WEIMA PowerLine shredder

18

FineCut series

For secondary shredding within a multi-stage production line, we recommend our machines of the FineCut series. They take care of already pre-shredded, clean material and work with significantly higher rotor speeds. The rotor, specially designed for high speeds, is available in lengths of 1,500 mm, 2,000 mm, 2,500 mm and 3,000 mm. The shredder is equipped with an electromechanical or high-torque drive and produces grain sizes between 15 - 150 mm.

Learn more

WEIMA FineCut waste shredder

19

See for yourself

The WEIMA show room is equipped with shredding and briquetting machines of all sizes and technologies. This enables us to simulate your application as realistically as possible. You have the possibility to send us your material or visit us directly in Ilsfeld. From our gallery you have the best view directly into the cutting room. So you can observe the shredding process live.

Request appointment now

Send eMail

Preprocessing of afr with heavy duty weima shredding line and drum screen

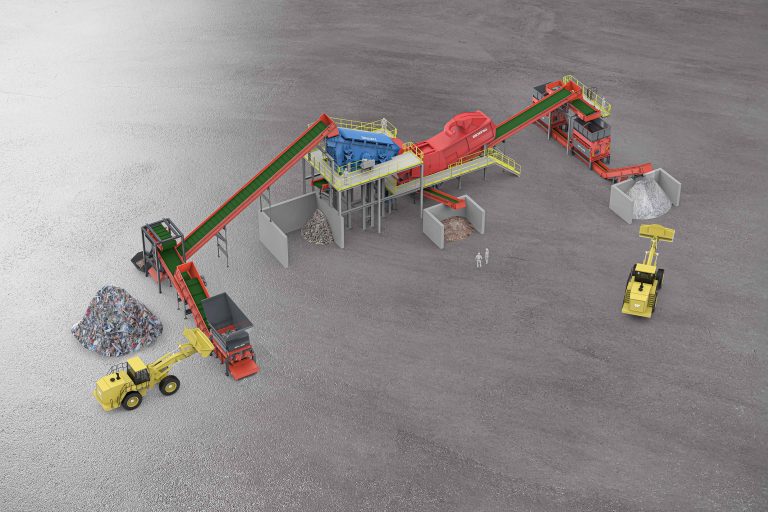

AFR Pre-Processing with WEIMA shredder, drum screen and metal separation

20

Textile shredding with a WEIMA PreCut 3000 @Tosung, South Korea

A powerful WEIMA PreCut 3000 single-shaft shredder shred old textiles at Tosung in Chilgok, South Korea.

Success stories

What our customers think

XXL Tilting Table for Insulation Boards Shredding at UNILIN

To achieve ambitious sustainability targets, UNILIN Insulation relies on a WEIMA WLK 1500 shredder at its site in Desselgem (Belgium) for shredding production scrap and waste from insulation board production. The distinctive feature is the hydraulic tilting table, that can feed panels up to 5.5 meters long into the shredder.

Read more

Power(line) for SRF Production

The Binn Group, Scotland’s leading independent provider of integrated recycling and resource management solutions, shreds industrial waste with a WEIMA PowerLine 2000 for further processing into secondary fuel.

Read more

Polish CEMEX cement plant relies on WEIMA

Two WEIMA PowerLine 3000 single-shaft shredders with a powerful hydraulic drive used in secondary shredding absolutely take center stage here….

Read more
LaFarge PowerLine Shredder

Cement production in the land of the Pharaohs

LaFarge, worldwide-leading building materials producer with its head office in Paris has successfully installed…

Read more

Shredding industrial waste in Brittany, France

Its main purpose is to produce valuable fuel for nationally and internationally operating cement manufacturers from domestic, household and industrial…

Read more
PowerLine 2000 und 3000 bei Amey Cespa

For a Clean Environment

There is always rush hour on the AmeyCespa plant site – every single day. The activity is mainly caused by…

Read more

Waste shredding protects resources in Indonesia

Recently, the company successfully inaugurated a modern recycling center in collaboration with its environmental technology partner Geocycle in Bogor near…

Read more
See more success stories
