WL 600
The standard machine
Th robust WL 600 shredder is perfect for small- to middle-sized wood shops for the purpose of shredding all kinds of wood like particle board scrap, MDF, solid wood, and other wood scrap.
01

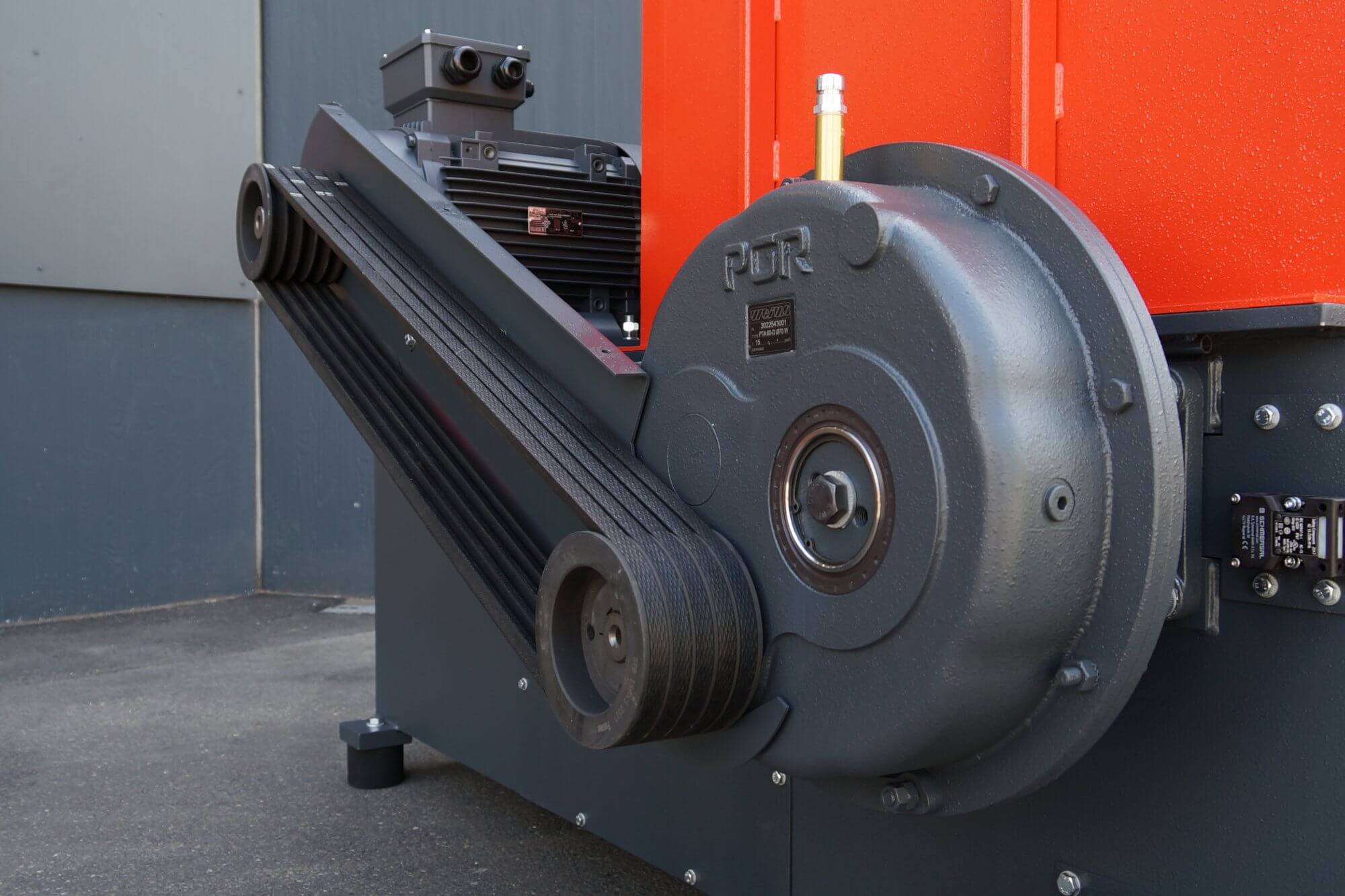

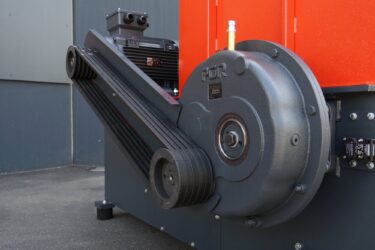

Powerful drive
by electric motor, power belt and robust gearbox
02
Homogeneous shredding results thanks to flexible, interchangeable screen
Adapt the screen to your needs. The smaller the hole diameter, the finer the shredded material that is discharged. Screens can be exchanged flexibly and are bolted as standard.
03
Chopping and heating
The Sucker Holzbau GbR produces a lot of wood waste. With the help of a WL 6 shredder and a wood chip stove, this is used to heat the workshops and offices as well as three single-family houses.
04
WL 600 shreds various types of wood
05
Safe material feed with load-controlled ram
The ram, which moves horizontally back and forth via hydraulics, feeds the material to the rotor. With WEIMA, it can be controlled or cycled automatically depending on the load. If required, of course, it can also be controlled manually. For even more aggressive feeding, we recommend additional serrated plates and hold-down device, which also hold bulky and long parts securely in place. A shock valve located on the hydraulic cylinder absorbs any shocks to the drawer, thus ensuring a longer service life.
Clean discharge of material by suction, screw or conveyor belt
Depending on your needs and frame design (elevated machine with conveyor belt cutout or side spout), you have the option of discharging shredded material either by air suction, discharge screw or classic conveyor belt. With experience from many thousands of machines on the market, we are also experts in conveyor technology and can supply you with a turnkey solution from a single source.
Clean discharge of material by suction, screw or conveyor belt
06

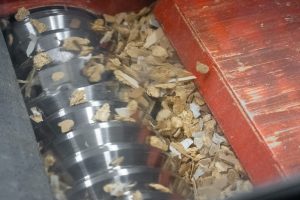

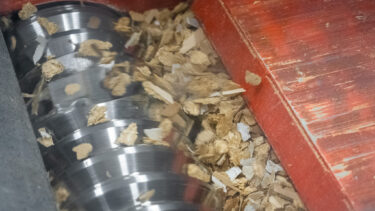

Robust rotor with knives
07

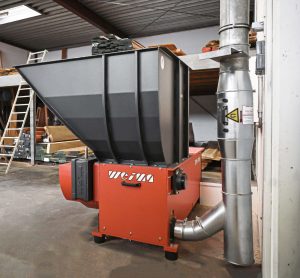

WL 4 with hopper extension shreds wood waste at the Ulrich Althoff GmbH
08
Efficiently absorb vibrations with stable rubber feet
Vibration-damping machine feet ensure a secure footing and help to significantly reduce disruptive vibrations in the surrounding area. Since the machine does not have to be anchored to the ground first, installation is particularly flexible and convenient.
Want to find out more about these machines?
Request a quote
Downloads
11 MB
Special machines catalog
Information about granulators, multi-shaft and horizontal-shredders from WEIMA
Technical data
Get to know our machines in detail.
- Rotor Diameter (mm)
- Rotor length (mm)
- Rotor Speed (rpm)
- Power (kW)
- Rotor Knives
- Available knife sizes (mm)
- Fraction size (mm)
- Connection diameter (mm)
- Infeed opening (mm)
- Length (mm)
- Width (mm)
- Height (mm)
- Weight (approx. kg)
WL 600
- 260*1
- 600
- 80 - 125*2
- 15 - 18,5 *3
- 14 *4
- 40
- 10 - 40
- 160
- 600 x 800
- 1.805
- 1.118
- 1.645
- 1.100
*1 dependent on flight circle
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 dependent on machine configuration
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 dependent on machine configuration
WL 4
- 260*1
- 600
- 80 - 125*2
- 11 - 18,5*3
- 28*4
- 40
- 10 - 40
- 160
- 600 x 1.050
- 2.045
- 1.190 *5
- 1.640
- 1.300
*1 dependent on flight circle
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
WL 6
- 260*1
- 800
- 80 - 125*2
- 15 - 22*3
- 42*4
- 40
- 10 - 40
- 200
- 800 x 1.250
- 2.045
- 1.540
- 1.840
- 1.700
*1 dependent on flight circle
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
WL 8
- 260*1
- 1.000
- 80 - 125*2
- 22*3
- 54*4
- 40
- 10 - 40
- 200
- 1.000 x 1.250
- 2.045
- 1.740
- 1.840
- 2.200
*1 dependent on flight circle
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
