WL 10-20

Single-shaft shredders

Advanced technology for all wood-based materials. The single-shaft shredders WL 10, WL 15 and WL 20 are mostly used in the wood processing industry for shredding large quantities of wood waste. The material can be discharged either via a transport screw, a suction system or via a conveyor belt or chain conveyor.

01

Flexible control for changing material flows

WEIMA only requires one control panel to precisely control one or more machines including the conveyor system. The built-in Siemens PLC control is optimally adapted to the shredding process. Various slide controls and rotor settings can be conveniently adjusted to the desired application. All control cabinets are designed in-house and built in our German production facilities.

02

Perfect cutting gap thanks to adjustable counter knives

The interaction between the cutting knife and the counter knife has a significant influence on the material throughput and the shredding result. To maintain a perfect cutting gap even with natural wear, counter-knives of this series are manually adjustable as well as reversible. Optimum cutting geometry keeps shredding energy-efficient, minimizes wear costs, and significantly extends the service life of the knife.

03

Universally applicable V rotor for demanding applications

Many of our customers describe the profiled V rotor as a best in class for shredding. The material intake is optimally designed with two rows of knives. The V rotor stands for high throughput rates, low energy consumption, reduced thermal stress and low wear costs.

04

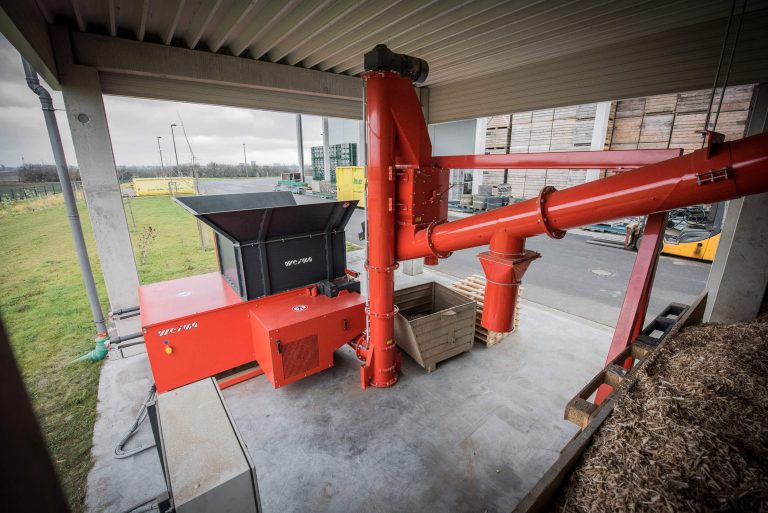

WL 15 shreds wood pallets for heating

05

Controlled material feeding by ram with serrated plate and segmented floor

The ram feed can be controlled manually, cyclically, or load-dependently. Depending on the application, it makes sense to supplement the classic material ram with more technical options. To prevent possible jamming and improve its guidance, the ram can be guided on rollers. In addition, WEIMA recommends the use of a segmented floor – especially for very thin materials.

06

Offset rotor bearings protect against dust and foreign matter

The shredding of particularly resistant materials requires correspondingly robust bearings that are easy to maintain. WEIMA uses long-life, spherical roller bearings, whose stable design and offset mounting from the machine frame protects against impacts and uncontrolled power transmission. Their additional shaft seal ring effectively helps against the intrusion of contaminants or dust.

07

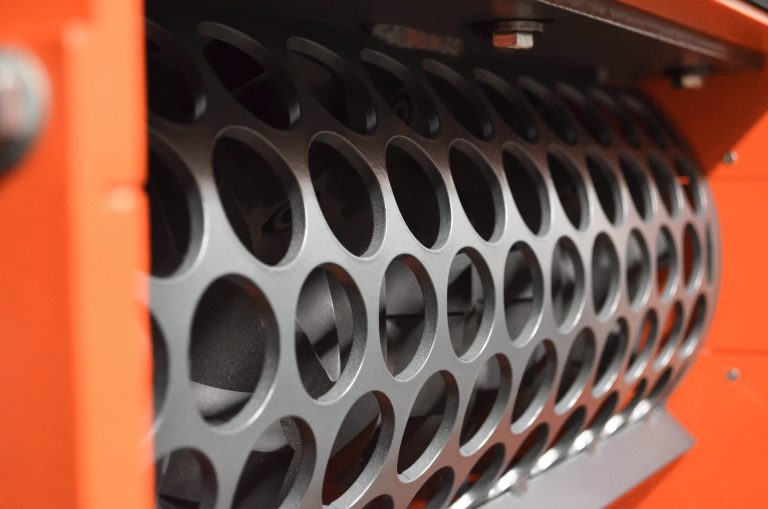

Homogenous shredding results thanks to flexible exchange screen

Adjust the screen to your needs. The smaller the hole diameter, the finer the shredded material that is discharged. Screens can be replaced flexibly and are screwed in place as standard.

Interested? Request a quote for a WEIMA shredder today. Send request
08

Robust electromechanical drive with in-house WAP gearbox

For most applications, electromechanical drives are the classic choice because they are easy to maintain and robust. WEIMA's special feature: we manufacture our own gearboxes that are specially designed for shredding operations. Torque monitoring and shock-absorbing vibration dampers round off the package. A hydrodynamic start-up clutch is available as an option for further protection of the machine.

More space for material discharge

by raising the machine frame
If you need more space for discharge, we recommend the optional increase of the machine frame by up to 200 mm. This makes your production even more flexible.
More space for material discharge
09

Even higher throughputs with turbo hydraulics

The ram of a shredder is moved back and forth hydraulically. With turbo hydraulics, this happens even faster. For continuous operation, additional oil cooling and a length measuring systems are available upon request.

10

Vibration damping machine feet for less vibration in the building
Thanks to compact feet made of hard rubber, there is no need to anchor the machine to the plant floor. The installation remains flexible. More importantly, disruptive vibrations that negatively affect the surrounding area are effectively avoided.

11

Pallet shredding mit WEIMA

WEIMA shredders easily shred pallets into wood chips, which can then be used as an energy source for your own heating system or sold for a profit. Nails and foreign matter can be removed by means of magnets.
