E.300
Packaging press for cans and packaging
The WEIMA E.300 is your economical introduction to draining and compacting technology. It produces pellets with 300 mm diameter. Drainage presses of the E series work electro-hydraulically by means of different hydraulic cylinders. The material is fed manually through the curved feed hopper. The pressed out liquid or paste is collected in a collecting trough and can be drained by a separate pump. Cleaning and maintenance is particularly user-friendly.
01

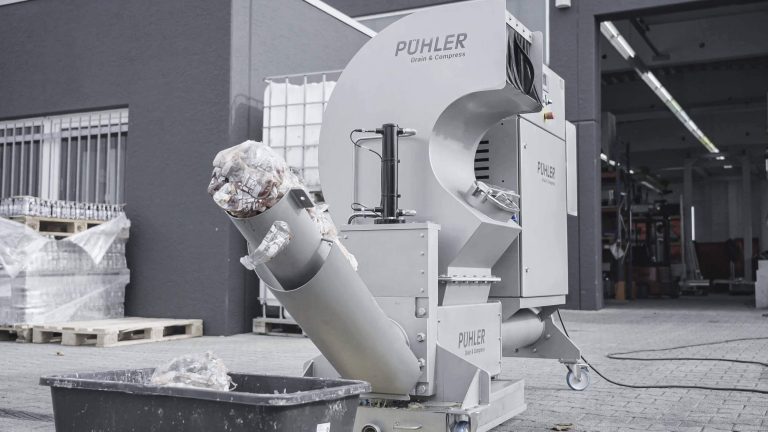

Easy installation and commissioning thanks to Plug-and-Play solution
To make the start as comfortable as possible, all presses of the E series are delivered pre-programmed and ready for operation as a plug-and-play solution. For the installation, only a power and water connection is required. On request, we also offer the setup and commissioning of the machine (including training) via digital channels.
02

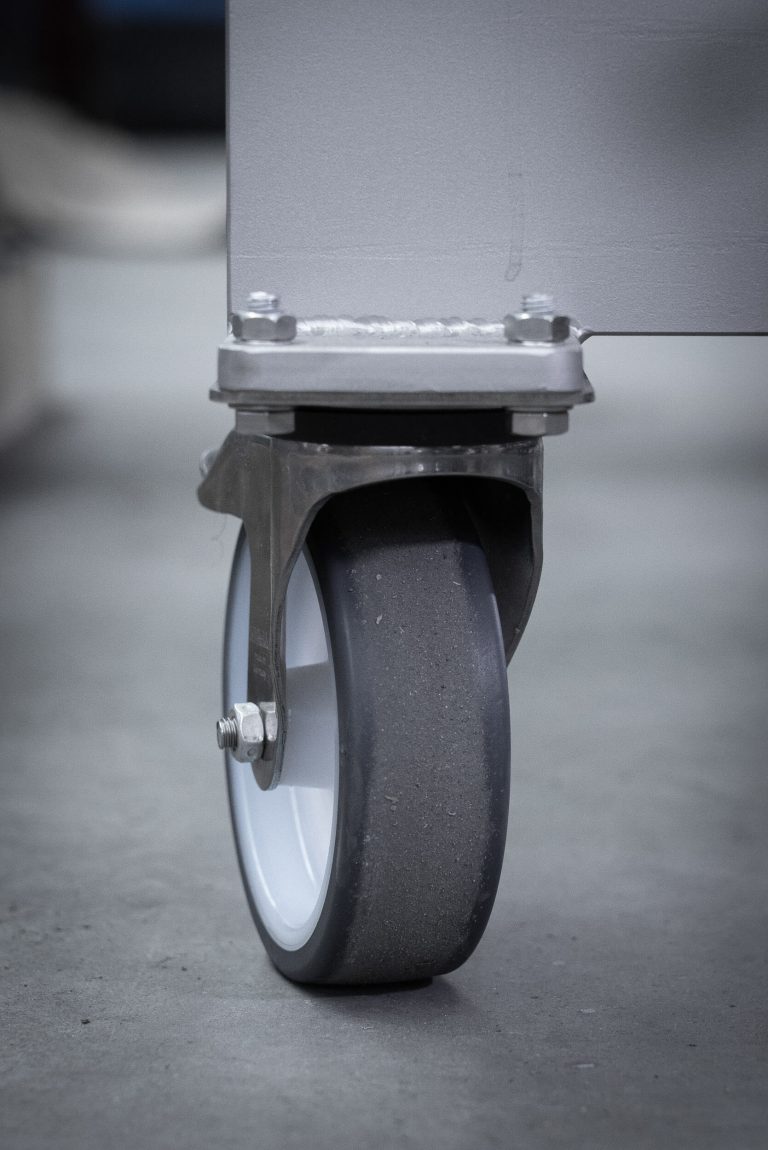

Flexible set up thanks to lockable rollers
For highly flexible use in your plant, the compact presses of the E series can be moved on lockable rollers to the respective place of use and can be used there directly. Temporary use outdoors is also possible, as the machine has been designed according to IP 65 standard.
03

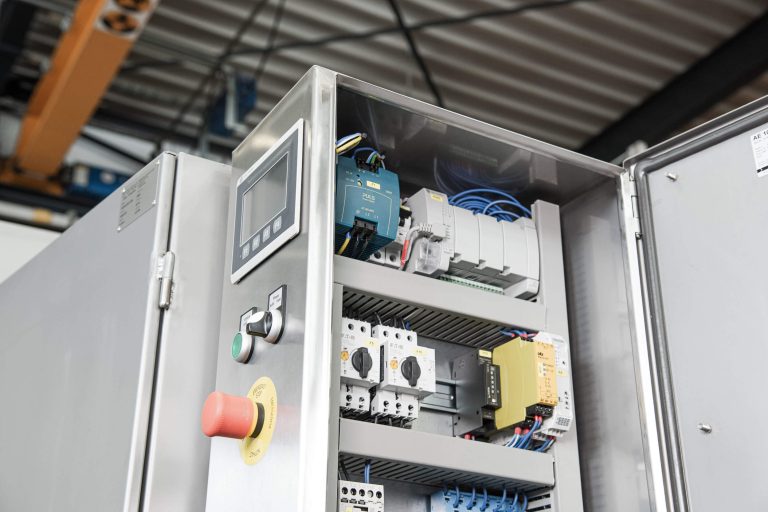

Simple operation and fast parameter adjustment via Siemens PLC control
Parameters (e.g. pressing time, pressing force) can be quickly adjusted via the color display of the built-in PLC control. The re-pressing function can also be set in a user-friendly way via the PLC control. This programmable holding time is particularly necessary for pressing absorbent materials. This is the only way to produce permanently dimensionally stable discs.
04

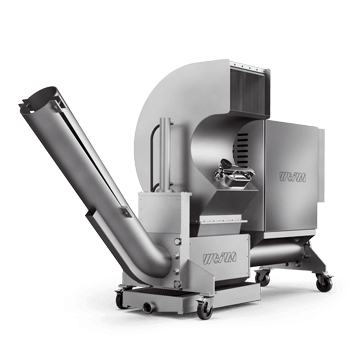

E.200 compresses cans, PET bottles and labels
05

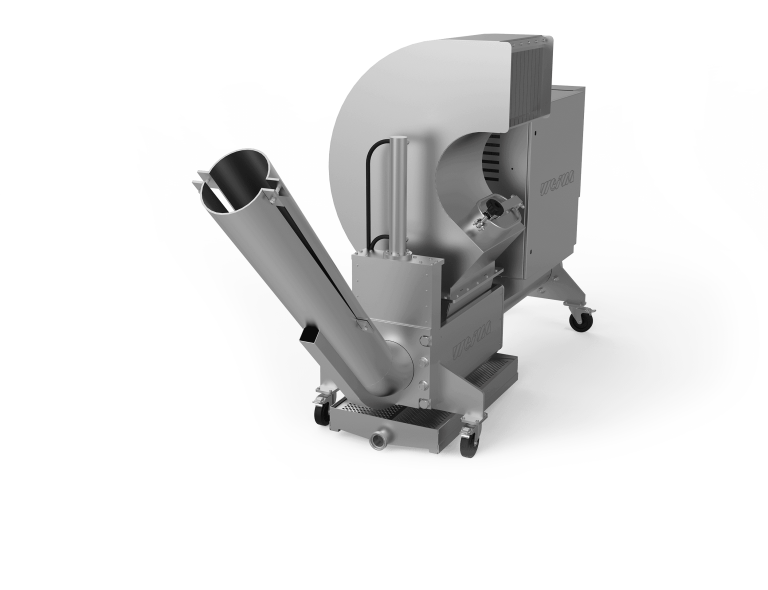

Automatic operation without worries thanks to sensors in the feed hopper
Thanks to level sensors in the feed hopper, the press can be used automatically. The machine switches on automatically when a certain filling level is reached in the hopper. To prevent wear on machine components, the machine automatically switches to standby as soon as the filling level falls below a certain level.
06

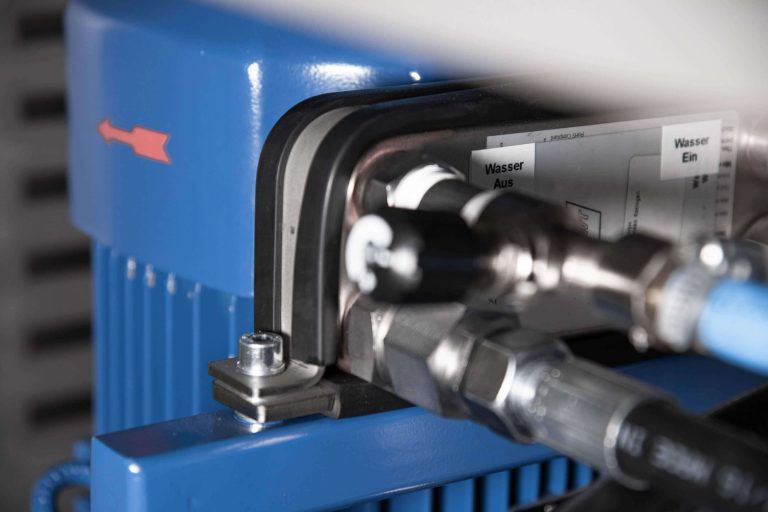

Ready for multi-shift operation due to oil cooling with heat exchanger
To compensate for temperature differences in the hydraulic oil, machines of the E series have an oil cooling system with water using the heat exchanger method. This ensures long operating times without downtime. The heat exchanger is installed in the hydraulic housing and thus is protected against contamination.
07

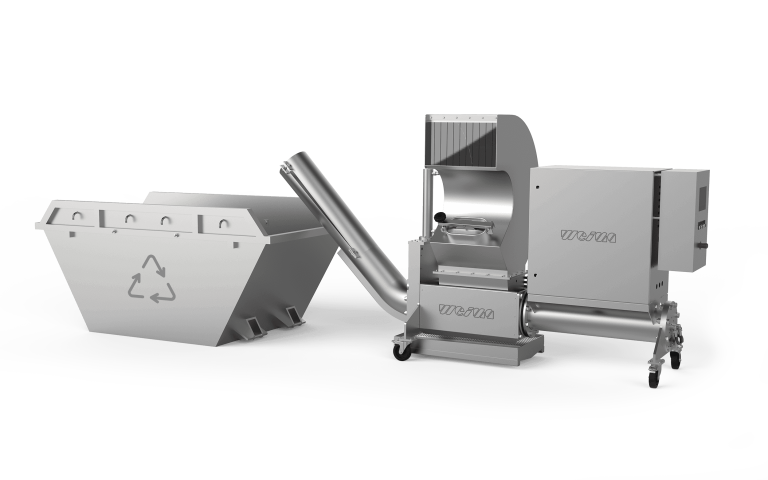

Increased discharge height of discs for flexible discharge into containers
The inclined discharge pipe allows the formed discs to be discharged at an elevated level – directly into a large bin or tipping trough. This saves the use of a conveyor belt. Depending on requirements, the discharge pipe can be configured straight, to the left or to the right.
Want to find out more about these machines?
Request a Quote
08

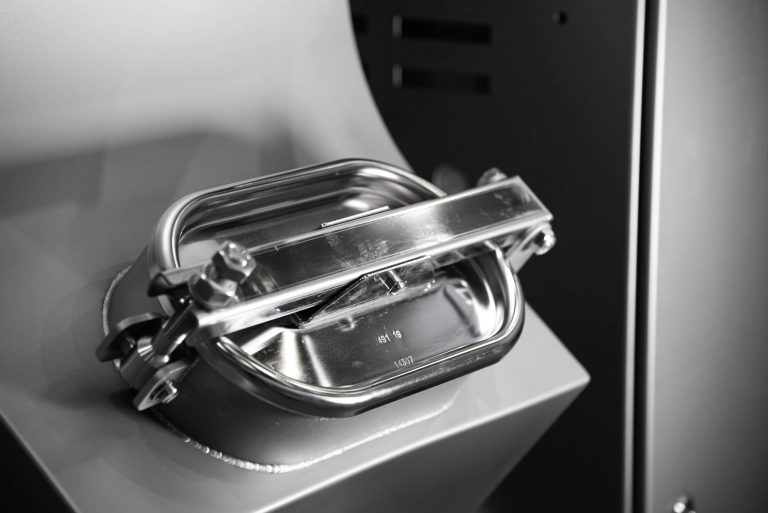

Good accessibility for cleaning and maintenance due to flexible installation and maintenance hatch
Thanks to brakable rollers, the E series machines can be used flexibly during operation. This ensures optimum access to the machine also during cleaning and maintenance. A maintenance and cleaning hatch on the hopper facilitates access to the inside of the machine.
09

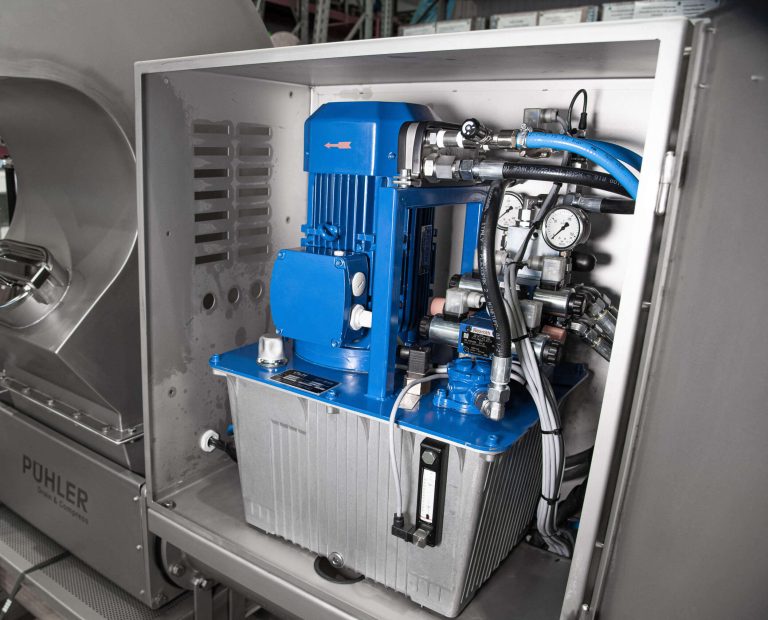

Robust hydraulic construction against foreign materials
The most important components of the hydraulic unit have been designed particularly generously to always have a buffer to fall back on, even under full load. Among other things, this results in lower heat generation and makes the machine significantly less susceptible to foreign matter.
10
DID YOU KNOW?
We believe in longevity. These machines are made of high-quality stainless steel. This makes them not only particularly robust, but also low-maintenance and hygienic.
11

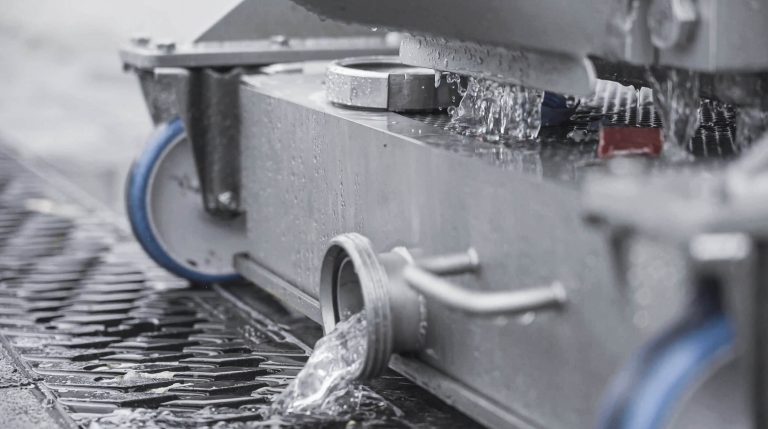

Collection and targeted discharge of liquids via the drain pan
The drain pan, which is located under the press, collects the drained liquids. Depending on the installation of the machine, these run off from there directly into a drain or can be drained off with the aid of a hose via the milk pipe fitting.
12

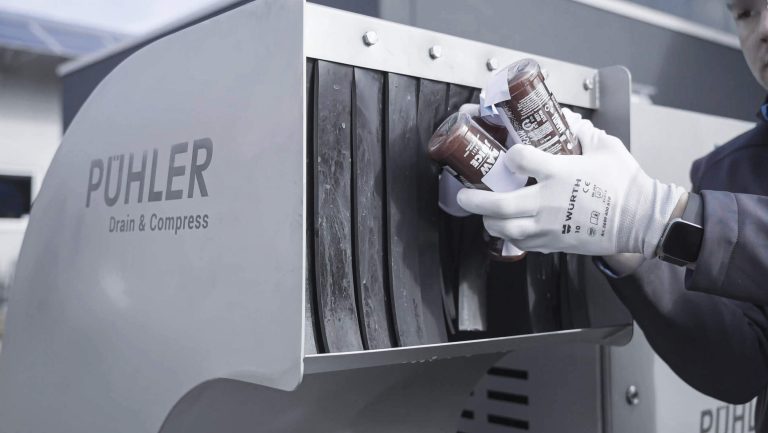

Maximum safety during loading due to curved hopper design
The curved hopper prevents cans or other materials from escaping from the machine during the pressing process due to the enormous pressing force. In addition, the curved shape facilitates cleaning and prevents uncontrolled spraying of pressed-out liquid from the filling opening.
Did you know?
By default, only food grade hydraulic oil is used in these machines. If required, a customer-specific hydraulic oil can also be used.
Did you know?
13
With WEIMA's compact packaging presses, you can open filled disposable packaging, separate the contents from the packaging and press the packaging material in a single operation. This way, cans, PET packaging, soft packaging, beverage cans, cream spray cans, TetraPaks, wet wipes, hygiene and cosmetic products and much more can be drained, separated and compressed at the same time.
Pressed discs from cans, PET bottles, paper, caps and labels
Downloads
16 MB
Briquetting- & drainage presses catalog
Information about briquetting-, packaging- and drainage presses from WEIMA
Technical data
Get to know our machines in detail.
- Output diameter (mm)
- Throughput rate
- Performance
- Residual moisture
E.300
- 300 mm
- 4,2 m³/h
- 5,5 kW | 400 V | 50 Hz
- 3-30 %
