Double WEIMA power at Remondis in Sweden

At the Remondis site in Röstanga, Sweden, HDPE pipes and other plastic waste from production are transformed into new raw materials using a WEIMA PowerLine 2500 shredder and a subsequent washing plant. Just 50 km away, a WEIMA S7.20 single-shaft shredder reduces large and heavy PE chunks in a Remondis recycling plant in Staffanstorp. The use of powerful WEIMA shredders enables effective processing of even the heaviest materials, highlighting the sustainability and efficiency of Remondis recycling processes.

Remondis in Röstanga: The Recycling Specialist

At the Röstanga site, post-consumer HDPE (High-Density Polyethylene), including thick-walled pipes and other plastic waste, is shredded, washed, and then sold as regrind to customers who manufacture new products from it. Remondis needed a robust machine to shred the materials: “It’s very heavy and large material that we shred. The demands on the shredder were high: it had to be particularly stable and weather-resistant, as it would be set up outdoors,” says Per Persson, site manager in Röstanga.

Plastic pipes lying around

HDPE pipes at Remondis in Röstanga

Large plastic pipes in different colors

HDPE pipes at Remondis in Röstanga

Many plastic pipes lying in a heap

HDPE pipes at Remondis in Röstanga

Plastic pipes on a fresh produce site

HDPE pipes at Remondis in Röstanga

the WEIMA PowerLine 2500 single-shaft shredder was convincing. The decisive factors were WEIMA’s robust design, superior machine equipment and ease of maintenance. Thanks to the hydraulic inspection flap, routine maintenance – whether turning knives, optimizing the cutting gap or removing foreign matter – is greatly simplified.

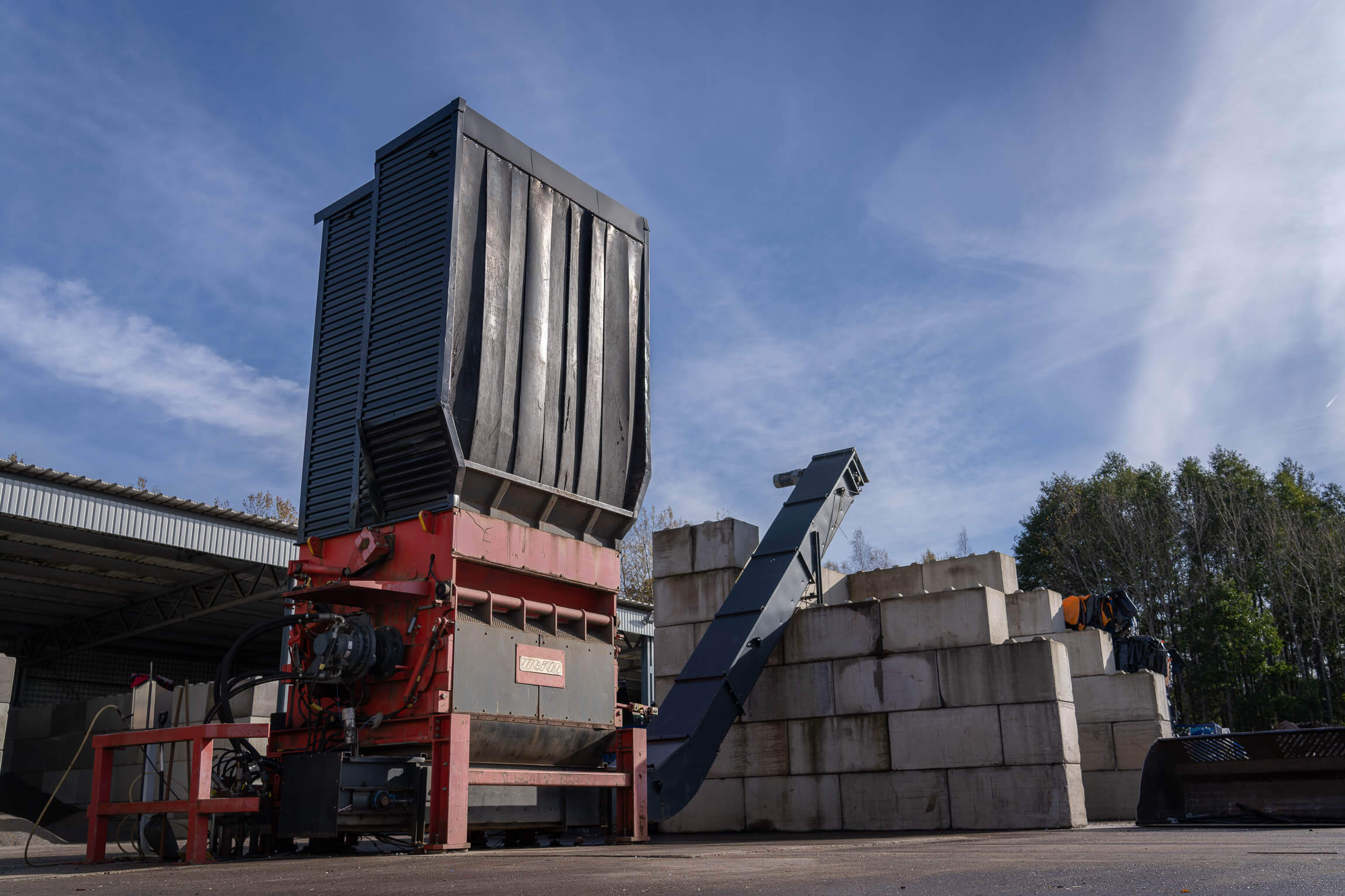

A WEIMA PowerLine 2500 shredder on the Remondis premises in Rostanga

WEIMA PowerLine 2500

More information about the shredder PowerLine 2500

Material Throughput of Five Tons Per Hour

To shred the robust pipes to a homogeneous particle size of 40 mm, the shredder is equipped with a special rotor. This rotor has a working width of 2,500 mm and a diameter of 800 mm. With the torque-strong hydraulic drive from Swedish market leader Hägglunds Bosch Rexroth, a throughput of approximately five tons per hour is achieved when shredding HDPE pipes. Additionally, a winter package for the hydraulics was supplied for the cold Swedish winter days.

A Remondis employee operates the PowerLine 2500

A Remondis employee operates the PowerLine 2500

An excavator fills the WEIMA Shredder PowerLine 2500

Filling the WEIMA PowerLine 2500

A hand with crushed black flakes

Shredded HDPE pipes

many shredded HDPE pipes

Shredded HDPE pipes

HDPE pipe remnants in a pile after shredding

HDPE pipes after shredding

After shredding, the plastic flakes are transported by conveyor belt to a bunker. In another hall, the shredded plastic is cleaned, dewatered, and packed into big bags in a washing plant. The washed plastic flakes are then sold and serve as raw material in the form of regranulate for new plastic products.

Double WEIMA Power in Sweden

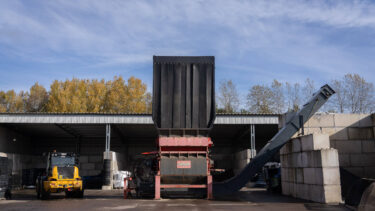

In the foreground is a WEIMA 2500 Powerline on the Remondis company premises in Rostanga
Shredding of HDPE pipes with a WEIMA PowerLine 2500
A WEIMA PowerLine 2500 single-shaft shredder shreds various types of HDPE pipes at a Remondis recycling plant in Röstånga, Sweden.
Visit YouTube
A WEIMA s7.20 single-shaft shredder in a hall on the Remondis premises in Staffanstorp
Shredding PE chunks with a WEIMA S7.20 shredder
A WEIMA S7.20 single-shaft shredder shreds large and heavy PE lumps at a Remondis recycling plant in Staffanstorp, Sweden.
Visit YouTube
0 / 0

Remondis in Staffanstorp: Shredding Heavy PE Chunks

In Staffanstorp, just 50 km further south, production waste from several Remondis customers in the form of PE chunks is shredded. The challenge here is the size and enormous weight of the material, up to 300 kg. Since this makes the use of a conveyor belt impossible, the large chunks are manually fed into the shredder’s hopper using a crane.

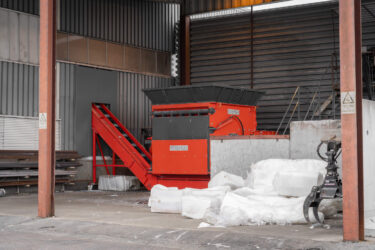

The WEIMA s7.20 single-shaft shredder in a hall

The WEIMA S7.20 single-shaft shredder

PE chunks lying around

Large PE chunks

A crane that transports the PE blocks into the s.7.20

A crane transports the PE chunks into the shredder

For shredding in Staffanstorp, S7.20a WEIMA S7.20 single-shaft shredder is used. With a rotor length of 2,000 mm and a 110 kW motor, it has enough volume and power to process the hard PE chunks into 60 mm flakes. Team leader Mensur Osmani particularly highlights the shredder’s maintenance-friendliness, robustness, and reliability.

PE chunks that are immediately shredded by the s.7.20

The WEIMA rotor shreds the hard PE chunks

Shredded PE chunks

Shredded PE chunks

More Information about the Shredder S7.20

"We have also tried some other brands, but ultimately found that WEIMA best meets our requirements and the material we process."

Mensur Osmani, team leader at the Staffanstorp site

High-Quality Regranulate at the End of the Recycling Loop

After shredding, the homogeneously shredded flakes are processed into recycled pellets using a recycling extruder. Special attention is paid to ensuring the granulate is of a single grade. To ensure this, materials are regularly tested in the in-house laboratory before recycling to reliably identify the type of plastic.

High-quality recycled pellets from extrusion

High-quality regranulate at the end of the recycling loop

The use of WEIMA plastic shredders at Remondis in Röstanga and Staffanstorp shows how effective modern recycling can be. The reliability of the machine ensures continuously high operational readiness with minimal downtime for maintenance. It allows for the processing of the most demanding materials and the production of high-quality regranulate. These recycling processes return valuable raw materials to the cycle and reduce environmental impact. Remondis demonstrates that innovative technology and environmental protection can be successfully combined—and has been doing so for a long time. "We have been working with WEIMA for over 25 years. If someone in the plastics industry needs a shredder, I would recommend WEIMA, because the shredders can handle large and heavy material," concludes Mensur Osmani.
