Granulators

Efficient secondary shredders for plastics recycling

Granulators, also known as granulators, are key technologies in plastics processing and recycling. They shred plastic waste such as sprues, rejects, film and profiles into uniform particles that are ideal for recycling or further processing. Their robust design and high efficiency make them indispensable for sustainable waste management.

These machines are usually used as secondary shredders in multi-stage recycling plants. Pre-shredded material is granulated to the desired final size. Granulators score points with their high rotor speeds, maintenance-friendly design and high throughput. Common areas of application are slides, container, thin-walled pipes, profiles, bumpers, injection molding waste and thermoformed parts.

a new WEIMA WNZ S44_45
Functional principle of WEIMA granulators
Funnel
Feeding the material into the hopper
Stator knives
Shredding between rotor and fixed stator knives (counter knives)
Sieve
Definition of grain size via sieve
Screw conveyor
Discharge of the granulated material via suction or screw conveyor
Funnel
Feeding the material into the hopper
Stator knives
Shredding between rotor and fixed stator knives (counter knives)
Sieve
Definition of grain size via sieve
Screw conveyor
Discharge of the granulated material via suction or screw conveyor

How does a granulator work?

A large feed hopper allows both manual feeding and feeding by conveyor belt. In the grinding chamber, the material to be shredded is caught by the rotating knives of the granulator. The highly effective V-cut technology with double diagonal cut ensures that the material to be ground is shredded efficiently and particularly finely. The material is ground against the stationary stator knives until it is small enough to fall through the granulator’s bottom-mounted sieve. This sieve defines the particle size and ensures a uniform end product.

After crushing, the granulated material is collected and ready for further processing. This process guarantees an optimal material flow and consistently high product quality, making granulators an indispensable tool for efficient plastics recycling.

High cutting performance thanks to shear cut

Granulators offer precise and powerful cutting performance. Different rotor variants enable optimum adaptation to the respective material. The cutting blades are arranged at an angle to the stator blade so that they work in a scissor cut. This targeted cutting gap extends across the entire working width of the machine.

Thanks to this technology, a homogeneous and even grind is produced. The scissor cut also reduces the noise level during operation. This ensures a pleasant working environment and protects the machine at the same time.

Rendering des WEIMA WNZ Granulator Rotors

Rendering of the rotor shaft of a WNZ granulator from WEIMA

WEIMA granulators and cutting mills in action

PVC lumps that get shredded
Two-stage shredding of plastic lumps
PVC start-up blocks are processed with a WEIMA WLK 4 and a WEIMA WNZ 200.
Visit YouTube
Two-stage shredding Shredder granulator
Shredding and granulating plastic waste
WEIMA WLK 15 single-shaft shredder and WSM 600/1000 granulator recycle various types of plastics, e.g. HDPE, PP, LDPE, PE,...
Visit YouTube
Felt remnants that get shredded
WEIMA Duo for textiles
WEIMA WLK 800 shredder and WNZ 310/600 granulator shred felt residues.
Visit YouTube
0 / 0

Where are granulators used?

Pelletizers are versatile and are ideal for processing a wide range of materials. They can reliably granulate pre-shredded plastics such as pipes, automotive parts or blow molding products, including PET and PP/PE bottles, canisters and buckets. Flexible materials such as slides can also be shredded efficiently

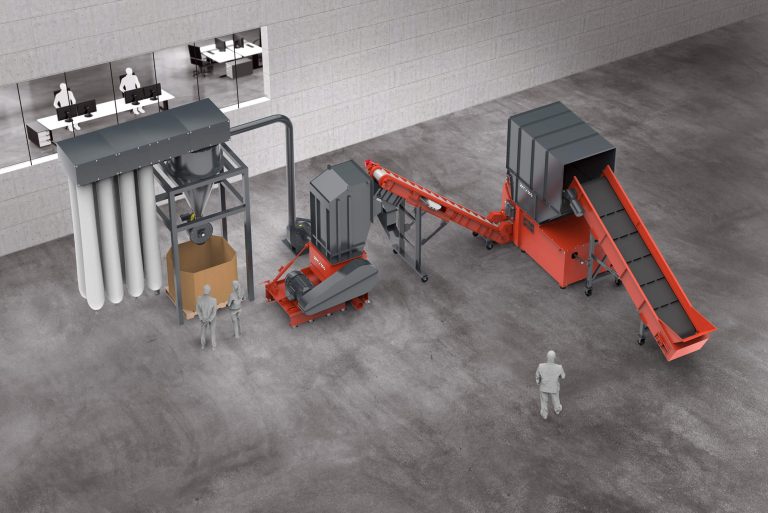

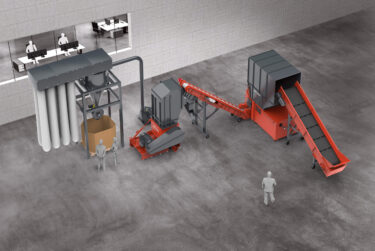

Two-stage recycling system with WEIMA shredder and granulator

Two stage recycling system

For regranulate of the highest quality
Thanks to their flexibility, the machines can be converted as required to effectively shred even thick-walled materials such as start-up lumps. The result is a high-quality, homogeneous recycled pellet that meets the high requirements of modern recycling companies. Whether for inline processing directly on the production line or as a central unit in a recycling center - granulators offer high-performance solutions for a wide range of requirements.

Our cutting mills bestsellers

Particularly in demand for the secondary shredding of production waste:

WNZ 310/600

WSM 300/600

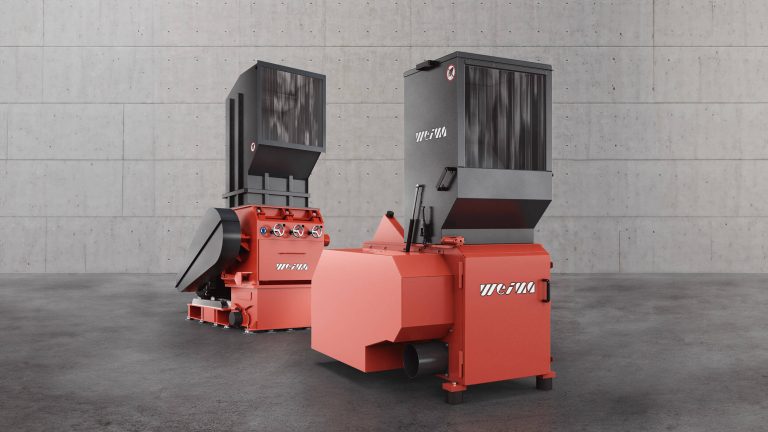

WEIMA granulators WSM 300/600 and WNZ 310/600 side by side

WSM 300/600 and WNZ 310/600

Advantages of granulator technology

WEIMA granulators impress with a combination of robustness, efficiency and user-friendliness. Their heavy-duty steel construction guarantees a long service life even with intensive use. Thanks to easy maintenance access, downtimes can be minimized, which increases productivity in demanding recycling processes.

With their high cutting performance and low energy consumption, the machines are not only economical but also environmentally friendly. The innovative V-cut technology ensures precise shredding, while the low energy consumption reduces operating costs. In addition, WEIMA granulators enable high throughput rates, which means that even large quantities of material can be processed efficiently. These advantages make them an optimal solution for companies that rely on sustainable and high-performance technologies.

.
