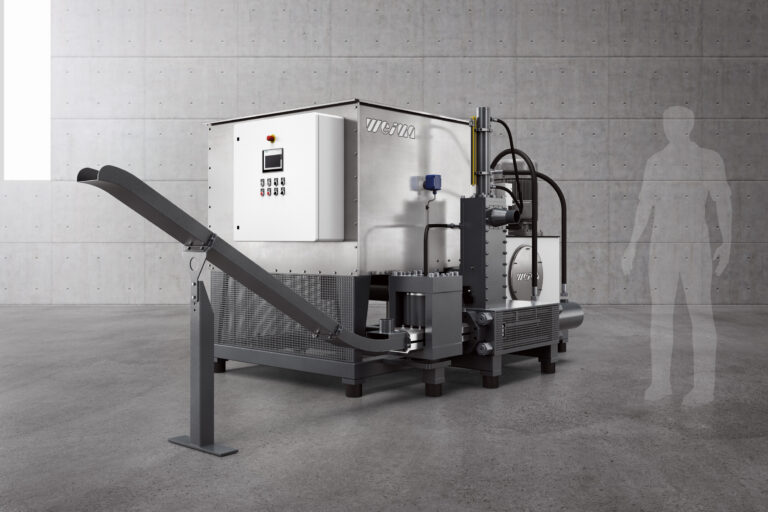

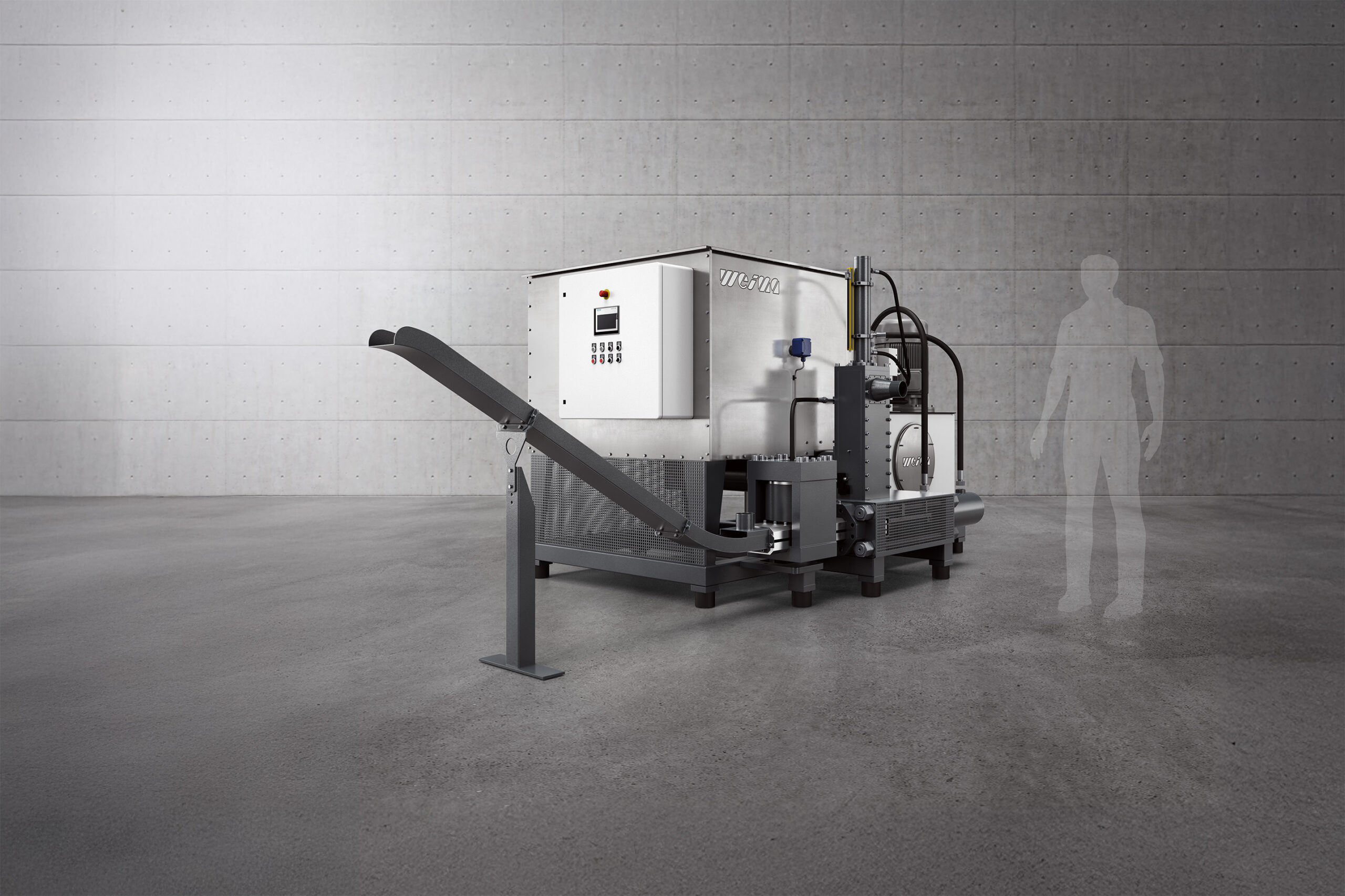

TH 1200

Square briquettes for higher throughputs

The modular design of the TH 1200 can be configured to suit your existing premises or production conditions. Briquettes can be made from materials such as wood, polystyrene, foam, light alloy, paper or biomass – with throughput rates and briquette quality to meet high industrial demands. Nearly every individual solution can be achieved-- this machine is available as a Duo version to double the throughput with a minimum of additional space.

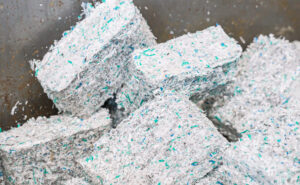

Shredded big bags briquetting with a WEIMA TH 1200

A WEIMA TH 1200 briquetting press compacts shredded big bags into solid briquettes.

Large material hopper for more surge capacity

The galvanized hopper, into which the material to be briquetted is fed, is equipped with a rotating agitator and a discharge auger at the bottom. It is available in dimensions of 1,400 x 1,400 mm or 2,000 x 2,000 mm, depending on the required surge capacity. The machine runs unattended by means of fill level monitoring.

WEIMA WLK 1000 single-shaft shredder shreds packaging foam, which is then pressed into solid briquettes by a TH 1200 briquetting press.

Non-stop briquetting thanks to standard oil cooling

TH Standard machines are equipped with hydraulic oil cooling as standard. This allows the briquetting press to be used for multi-shift, unattended operation.
Non-stop briquetting thanks to standard oil cooling

Convenient operation with advanced Siemens PLC control

We manufacture all briquetting press control cabinets ourselves in our German plants in Ilsfeld, Abstatt and Annaburg. For this purpose, we use only brand-name components – and this also applies to our machine control system. The high-quality Allen Bradley or Siemens control system with touch display optimally coordinates the components with each other, which makes it possible to achieve consistently high briquette quality.

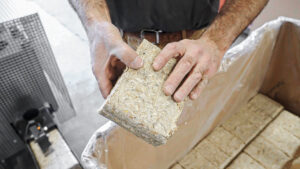

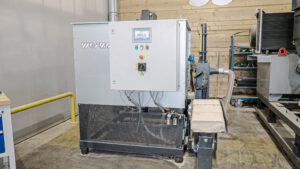

Wood shavings briquetting with a WEIMA TH 1200

A WEIMA TH 1200 briquetting press compacts wood shavings into solid briquettes.

Longer briquetting, more pressing cycles with large hydraulic oil tank and large pressing mechanism
The larger the hydraulic tank, the longer it takes for all of the oil to heat up. This has a positive effect on the working time of the briquette press. The hydraulic unit is also temperature controlled. All in all, this results in significantly increased throughput due to fast pressing cycles and a more robust overall machine.

Dust-reduced compression for more safety and cleanliness
Briquetting is carried out without the addition of adhesives or binders, which makes subsequent use for energy purposes harmless. Thanks to a closed pressing system, the continuous escape of dust is also effectively prevented. This protects your employees and keeps your production halls clean.

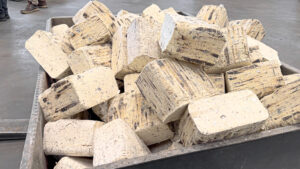

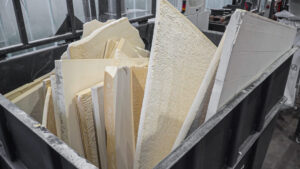

Shredding and compressing of PU plastic sheets with WEIMA WLK 1500 shredder and TH 1200 briquette press

Maximum variability thanks to modular design

If required, individual components, such as the hydraulic tank, control cabinet or the oil tank, can be flexibly positioned. The machine adapts to your individual production requirements – not vice versa. Integration into existing production lines is extremely convenient. This means that all avenues are open to you, even for future optimization.

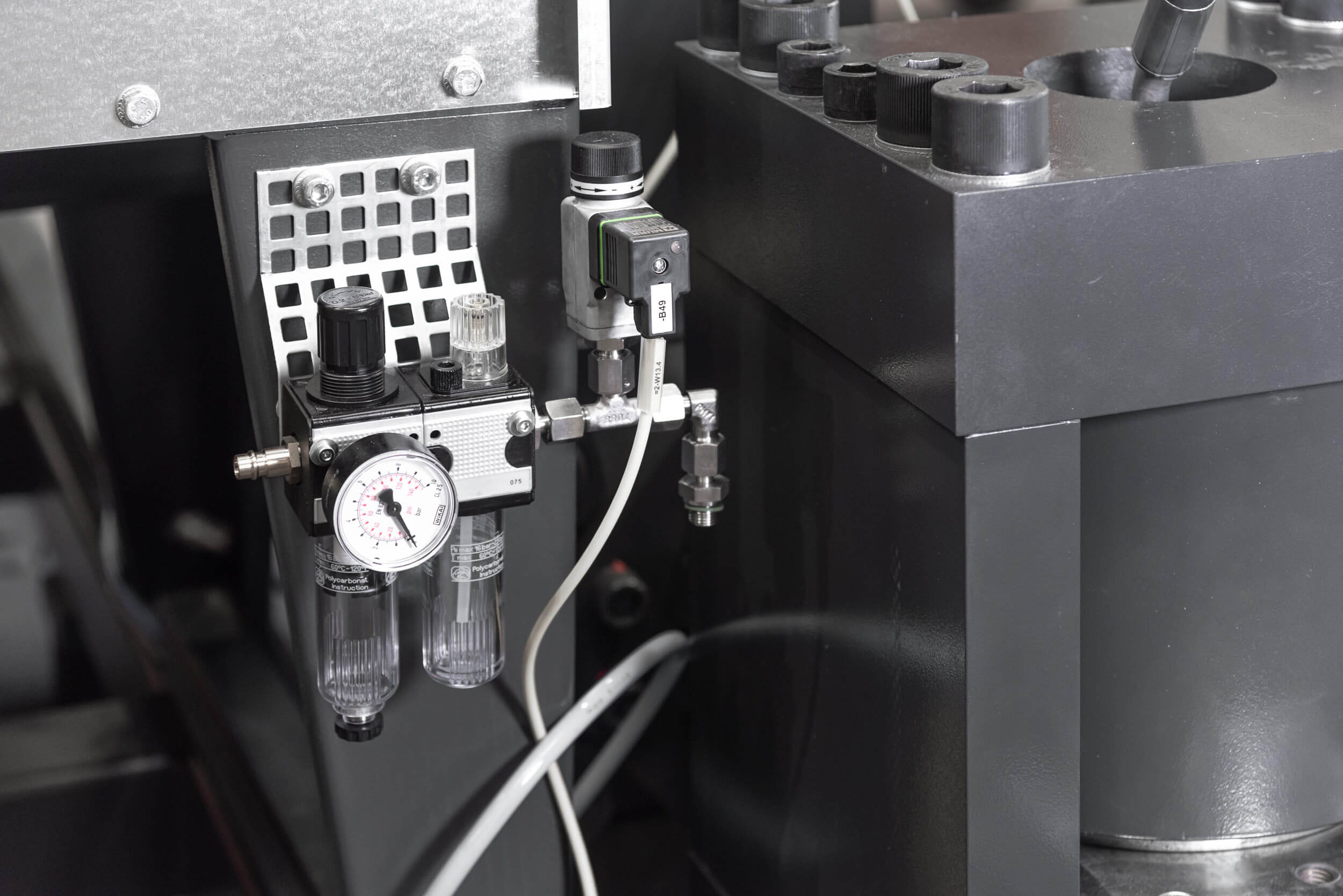

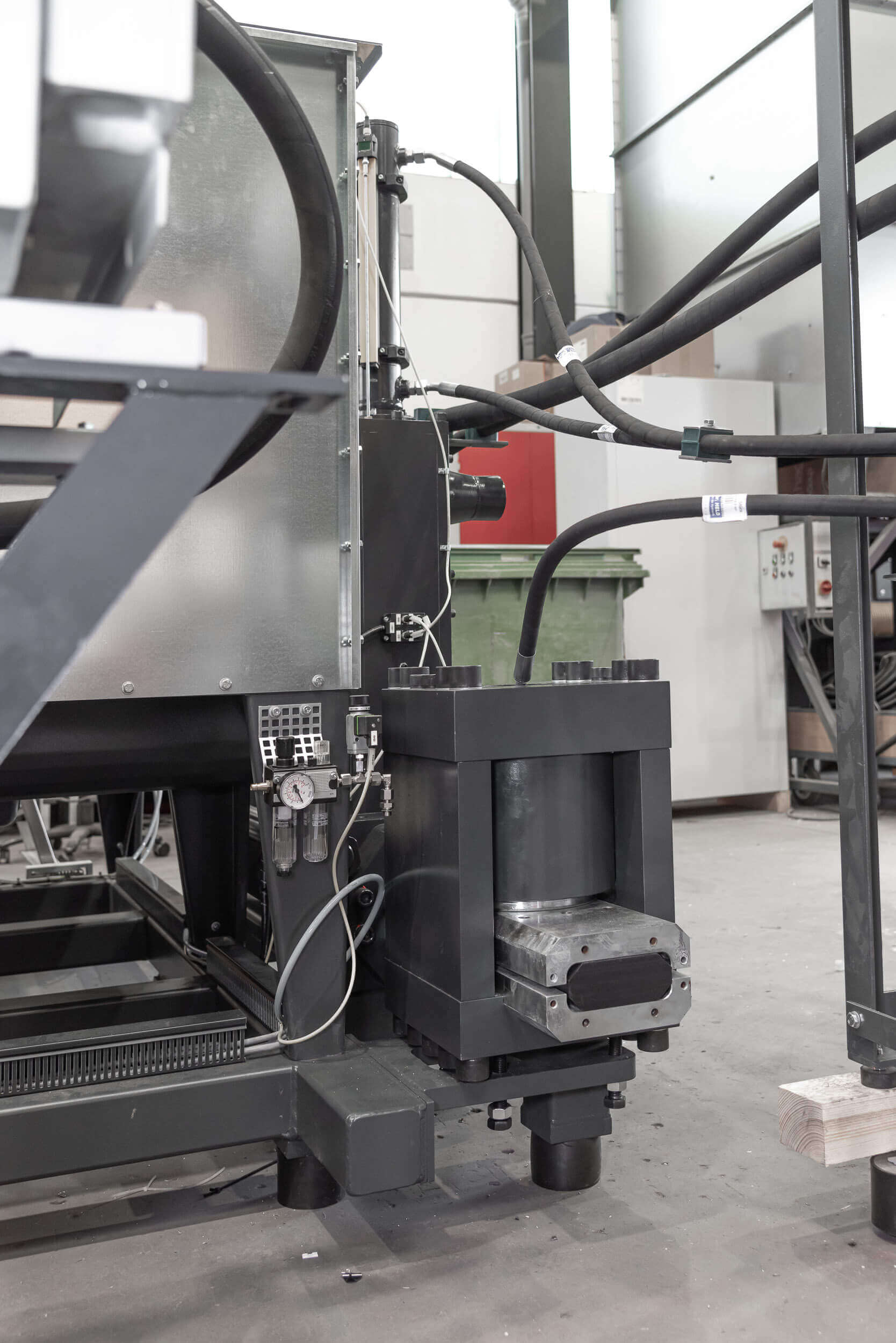

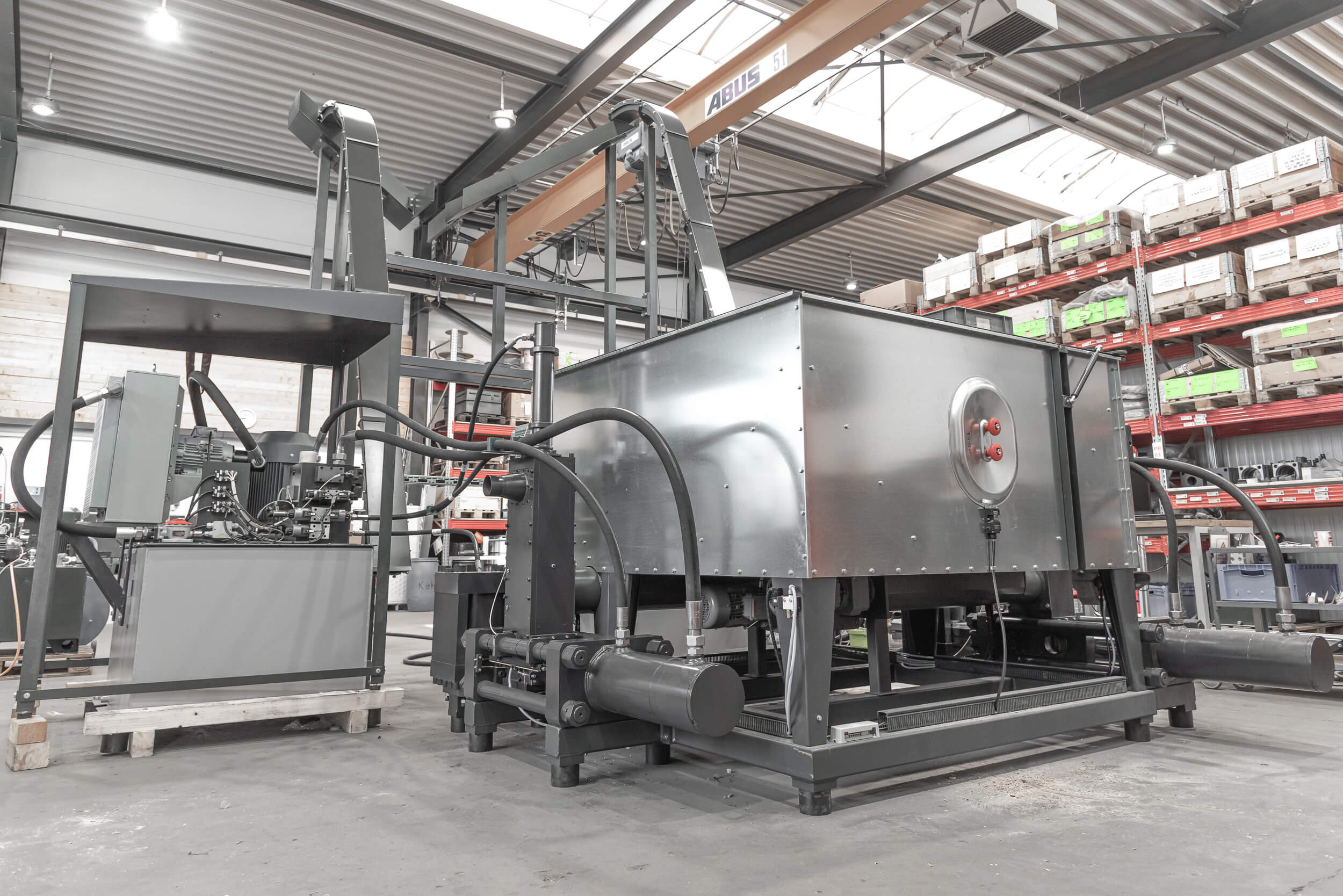

Even higher throughput rates with the Duo version

To further increase the throughput and availability of a machine, the TH 1200 can be optionally equipped with an additional screw conveyor and pressing mechanism. The container size remains the same. This saves space that would otherwise have to be used for another machine.

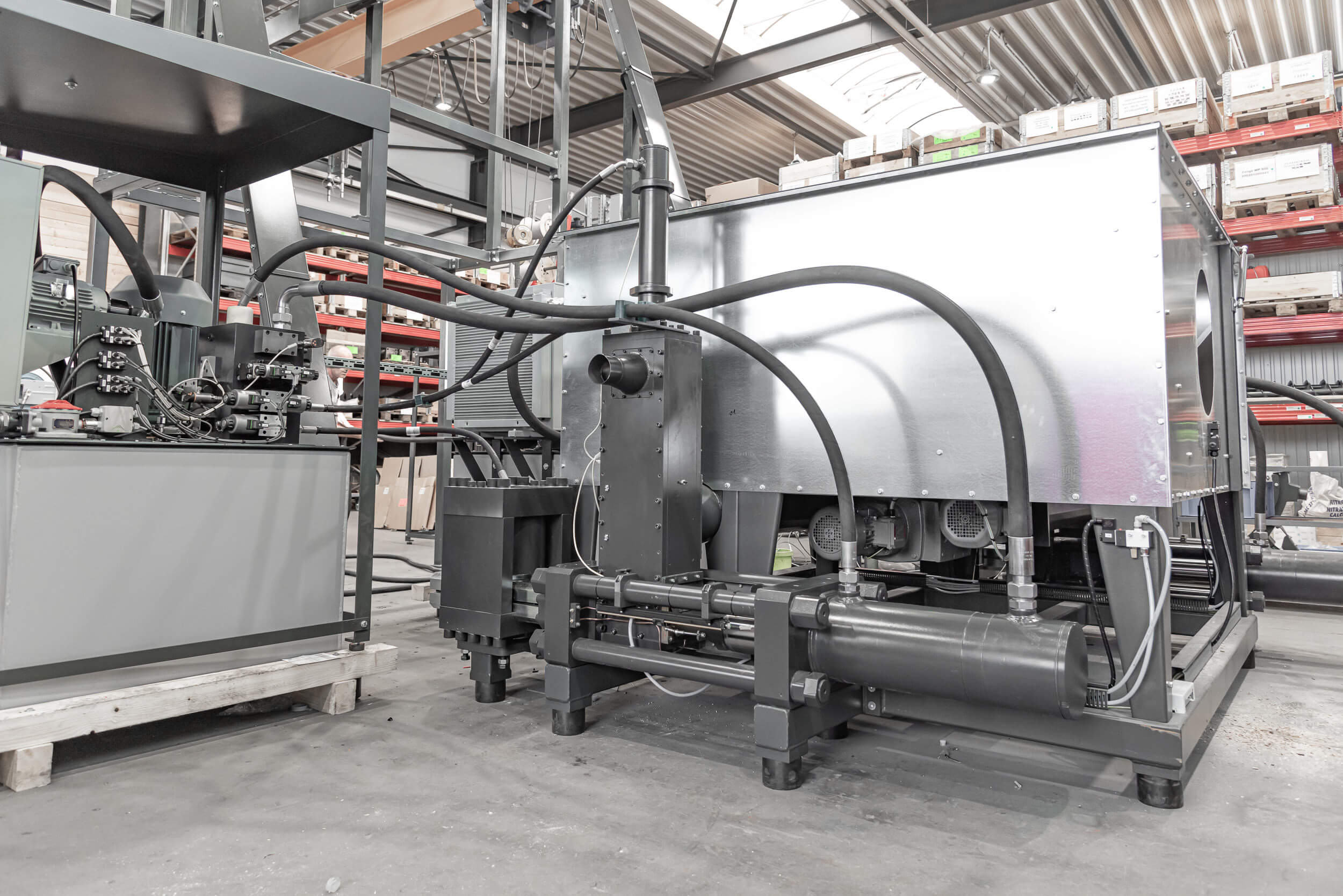

Even higher throughput rates with the Duo version

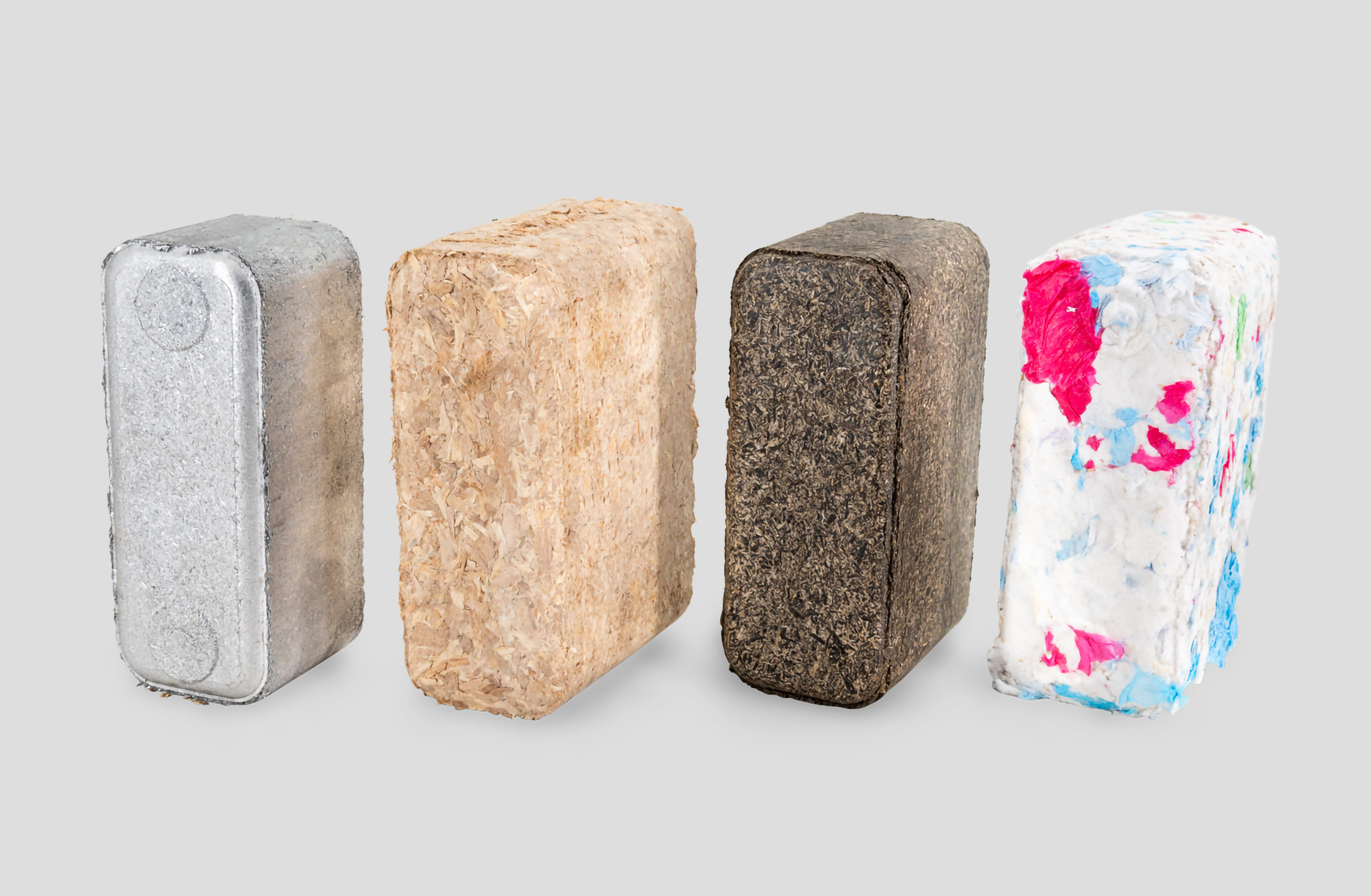

Rectangular briquettes for sale quality

The TH 1200 produces rectangular briquettes measuring 150 x 60 mm with variable lengths. These can be ideally stacked, packaged and then sold at a profit. The large capacity hydraulic unit allows multi-shift operation with high throughput rates. Highly compressed briquettes are produced with the aid of a generously dimensioned clamp cylinder.

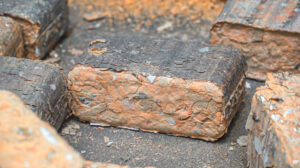

WEIMA W5.18 shredder with hydraulic drive and TH 1200 briquette press shred and briquette roller shutter boxes

Downloads

3 MB
TH 1200 brochure
Information about the TH 1200 briquetting press from WEIMA
16 MB
Briquetting- & drainage presses catalog
Information about briquetting-, packaging- and drainage presses from WEIMA

Compare our models

Find the right machine
  • Briquette diameter (mm)
  • Briquette format (mm)
  • Throughput rate (kg/h)
  • Hydraulic motor (kW)
  • Hydraulic oil charge (l)
  • Weight (approx. kg)
TH 1200
  • -
  • 150 x 60
  • 500*1
  • 22
  • 600
  • 2,500
*1 depending on material
