Shredding
Woodchuck
The economical shredder
Watch it shred Specifications and brochure
Portrait von Erik Hagen
Have a question about the shredder?

Shredder for wood waste - The WEIMA Woochuck

  • Small Footprint

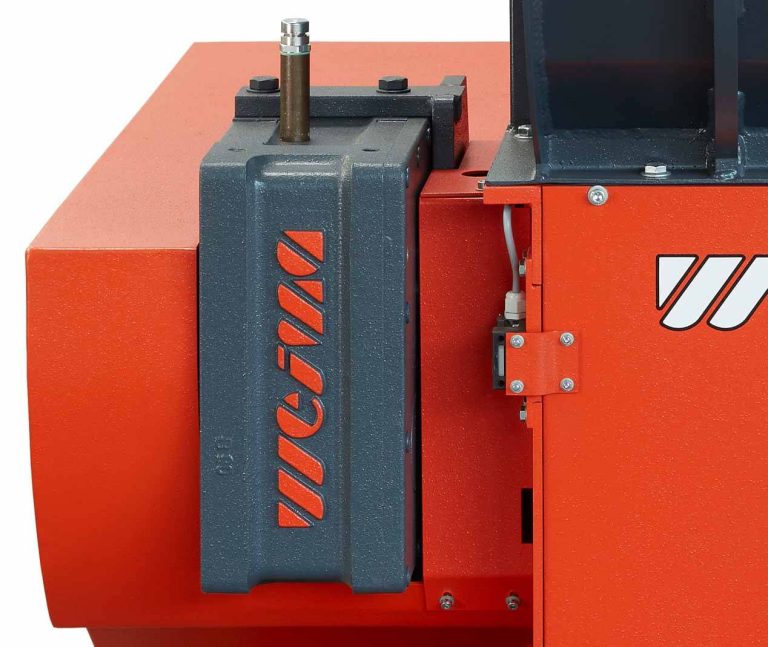

  • WEIMA Gearbox
  • Electromechanical Drive
  • Vibration Damper
  • Pneumatic Discharge

The classic Woodchuck can be used for all kinds of wood waste. The popularity of this shredder assures high reliability at a competitive price-to-performance ratio. The grinder sets itself apart from other machines of its size and type due to its robust construction, giving it a longer life cycle. The shredded wood can be discharged into an air conveyor or onto a traditional conveyor. The profiled rotor is made of solid material and mounted on stable rotor bearings. Special blade holders are welded into milled blade pockets around its circumference. The cutting knives are set into these and bolted in place. This ensures quick and easy blade changing.

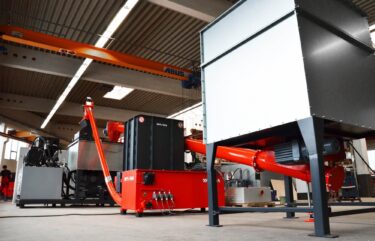

This installation is outfitted with a shredder and briquette press.

Woodchuck machines have a small footprint, making them easy to integrate into operations with minimal space.

Pneumatic discharge connection

You can use a screw auger to discharge shredded material, or they can be hooked up to a pre-existing air system through the pneumatic discharge connection feature.

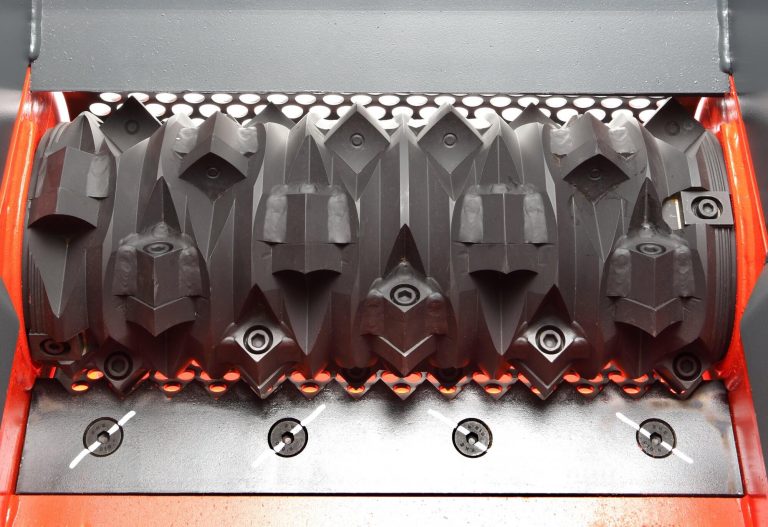

WEIMA rotor with vautid coating
Tailored solutions Have a question about the shredder?
Request a quote
Compare our models
0
  • Hopper opening length (mm)
  • Feed opening width (mm)
  • Rotor diameter (in/mm)
  • Rotor length (mm)
  • Rotor speed (rpm)
  • Power (hp)
  • Rotor Knives
  • Available knife sizes (mm)
  • Fraction size (mm)
  • Connection diameter (in/mm)
  • Infeed (mm)
  • Length (mm)
  • Width (mm)
  • Height (mm)
  • Weight (approx. kg)
Woodchuck
Woodchuck
  • 1050
  • 600
  • 260
  • 600
  • 90 - 110
  • 25
  • 28
  • 40
  • -
  • 160
  • -
  • 2045
  • 1163
  • 1640
  • 1400
WL 10
WL 10
  • -
  • -
  • 370
  • 1.000
  • 100
  • 30 - 45
  • 52
  • 40 | 60
  • 10 - 60
  • 200
  • 1.000 x 1.200
  • 2.440
  • 1.950
  • 1.730
  • 3.000
WL 15
WL 15
  • -
  • -
  • 370
  • 1.500
  • 100
  • 37 - 75
  • 82
  • 40 | 60
  • 10 - 60
  • 250
  • 1.500 x 1.530
  • 3.130
  • 2.445
  • 1.730
  • 5.000
WL 20
WL 20
  • -
  • -
  • 370
  • 2.000
  • 80 - 125
  • 55 - 110
  • 110
  • 40 | 60
  • 15 - 100
  • 250
  • 2.000 x 1.500
  • 2.700
  • 3.100
  • 1.930
  • 5.800
WL 4
WL 4
  • -
  • -
  • 260
  • 600
  • 100
  • 11 - 18,5
  • 28
  • 40
  • 10 - 60
  • 160
  • 600 x 1.050
  • 2.045
  • 1.165
  • 1.640
  • 1.300
WL 6
WL 6
  • -
  • -
  • 260
  • 800
  • 100
  • 18,5 - 22
  • 42
  • 40
  • 10 - 60
  • 200
  • 800 x 1.250
  • 2.390
  • 1.390
  • 1.840
  • 2.000
WL 6 S
WL 6 S
  • -
  • -
  • 370
  • 800
  • 100
  • 30 - 37
  • 42
  • 40
  • 10 - 60
  • 200
  • 800 x 1.200
  • 2.520
  • 1.750
  • 1.730
  • 2.600
WL 600
WL 600
  • -
  • -
  • 260
  • 600
  • 100
  • 15
  • 14
  • 40
  • 10 - 60
  • 160
  • 600 x 800
  • 1.805
  • 1.120
  • 1.640
  • 1.200
WL 8
WL 8
  • -
  • -
  • 260
  • 1.000
  • 100
  • 22
  • 54
  • 40
  • 10 - 60
  • 200
  • 1.000 x 1.250
  • 2.390
  • 1.640
  • 1.840
  • 2.400

Brochure

Download brochure
Download brochure
Woodchuck
2 MB

Power meets precision!

Take a closer look at the shredding in action
Watch it shred!
Pine wood end cuts are an ideal application for this WEIMA shredder.
WEIMA rotor with vautid coating
