WL 600

The standard machine

Th robust WL 600 shredder is perfect for small- to middle-sized wood shops for the purpose of shredding all kinds of wood like particle board scrap, MDF, solid wood, and other wood scrap.

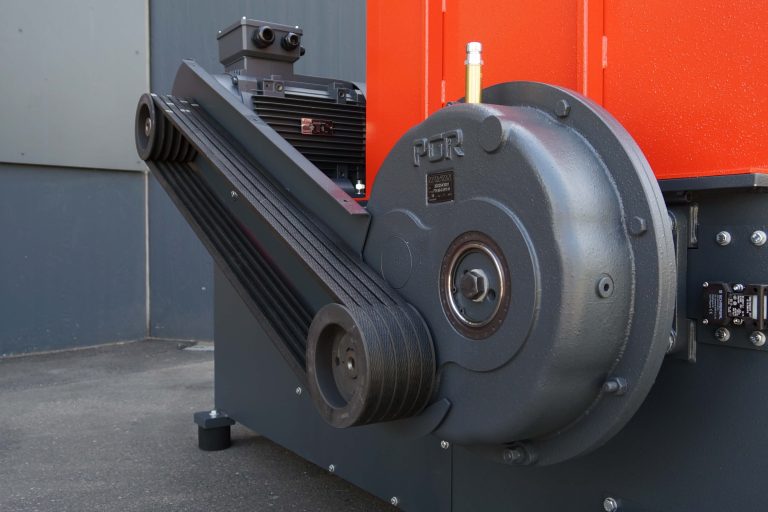

Powerful drive

by electric motor, power belt and robust gearbox

Screwed interchangeable strainer from WEIMA

Homogeneous shredding results thanks to flexible, interchangeable screen

Adapt the screen to your needs. The smaller the hole diameter, the finer the shredded material that is discharged. Screens can be exchanged flexibly and are bolted as standard.

Chopping and heating

The Sucker Holzbau GbR produces a lot of wood waste. With the help of a WL 6 shredder and a wood chip stove, this is used to heat the workshops and offices as well as three single-family houses.

Visit YouTube

WL 600 shreds various types of wood

Safe material feed with load-controlled ram

The ram, which moves horizontally back and forth via hydraulics, feeds the material to the rotor. With WEIMA, it can be controlled or cycled automatically depending on the load. If required, of course, it can also be controlled manually. For even more aggressive feeding, we recommend additional serrated plates and hold-down device, which also hold bulky and long parts securely in place. A shock valve located on the hydraulic cylinder absorbs any shocks to the drawer, thus ensuring a longer service life.

Clean discharge of material by suction, screw or conveyor belt

Depending on your needs and frame design (elevated machine with conveyor belt cutout or side spout), you have the option of discharging shredded material either by air suction, discharge screw or classic conveyor belt. With experience from many thousands of machines on the market, we are also experts in conveyor technology and can supply you with a turnkey solution from a single source.
Clean discharge of material by suction, screw or conveyor belt

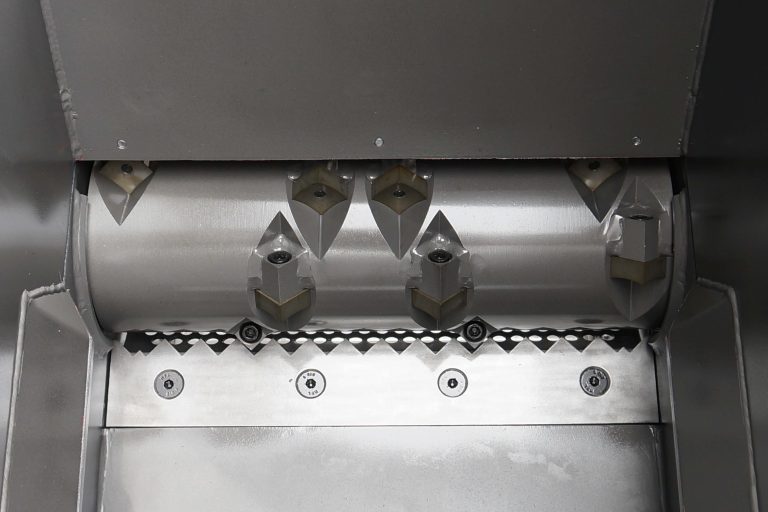

Robust rotor with knives

WL 4 with hopper extension shreds wood waste at the Ulrich Althoff GmbH

Visit YouTube

Efficiently absorb vibrations with stable rubber feet

Vibration-damping machine feet ensure a secure footing and help to significantly reduce disruptive vibrations in the surrounding area. Since the machine does not have to be anchored to the ground first, installation is particularly flexible and convenient.

Want to find out more about these machines? Request a quote

Compare our models

Find the right machine
  • Rotor Diameter (mm)
  • Rotor length (mm)
  • Rotor Speed (rpm)
  • Power (hp)
  • Rotor Knives
  • Available knife sizes (mm)
  • Fraction size (mm)
  • Connection diameter (in/mm)
  • Infeed (mm)
  • Length (mm)
  • Width (mm)
  • Height (mm)
  • Weight (approx. kg)
WL 600
  • 260*1
  • 600
  • 80 - 125*2
  • 15 - 18,5 *3
  • 14 *4
  • 40
  • 10 - 40
  • 160
  • 600 x 800
  • 1.805
  • 1.118
  • 1.645
  • 1.100
*1 dependent on flight circle
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 dependent on machine configuration
Download brochure
Want to find out more about these machines? Get in touch now
